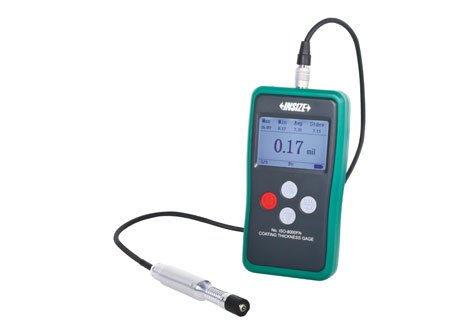

SPECIFICATION
Probe: Magnetic induction probe (included)
Measuring range: 0-500μm
Resolution:0.1μm (range<100μm); 1μm (100μm≤range≤500μm)
Accuracy: ±(0.5+2%L)μm L is measuring thickness in um
Repeatability: ≤(0.2+0.8%L)μm L is measuring thickness in um
Measuring mode: single and continuous
Measure interval:
Single mode: 1.5s
Continuous mode: 0.4s
Calibration mode: zero calibration and multi-points calibration (1-5 points)
Minimum substrate thickness: 0.1m
Minimum measuring area: 7mm
Minimum radius of curvature workpieces:
Convex surface: 1.5mm
Concave surface: 10mm
Unit: um/mil
Power supply: 4x1.5V AAA batteries
Dimension: 148x76x26mm
Weight: 148g
Standard Delivery
Main unit 1pc
Magnetic induction probe 1 pc
Zero calibration plate 1pc
Calibration foils 1 set
1.5 AAA battery 4 pcs
