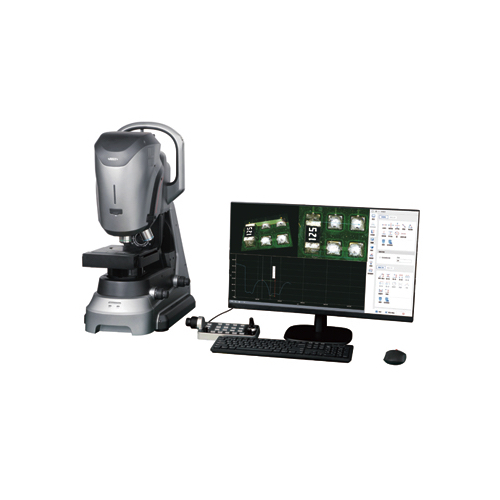

INSIZE ISM-H5000 ກ້ອງຈຸລະທັດການວັດແທກຄວາມເລິກຂະໜາດໃຫຍ່ຂອງສະໜາມ 3 ມິຕິ (ປະເພດຂັ້ນສູງ) (30X-6000X)
Magnification: 30X-6000X (Digital magnification available for 5000X and 6000X)
Objective: 1.5X, 5X, 20X, 50X
Horizontal Resolution: 0.42μm
Maximum Depth of Field: 30mm
Working Distance: 2-30mm
Max. Height of Workpieces: 90mm
View Field: 50.60×38.00μm to 9977.30×7483.00μm
Accuracy: ±(0.5+0.005L)μm (L is measuring length/height in mm)
Illumination: Bright field, dark field, hybrid lighting, projected lighting
Light Source: LED, lifespan about 40,000 hours
Maximum Viewable Pixel Size: 5 billion pixels (2D), 2.5 billion pixels (3D)
Tilting Angle Range: -89° to +89°
Sensor: 1/1.7" CMOS
Camera: 12.22MP (4168×3062)
Frame Rate: 30fps
Resolution: Quick: 2048×1536, Standard: 2880×2160, High: 4000×3000, High Def: 8000×6000/12000×9000
Display Size: 27" screen
Pixel Pitching: 0.1554×0.1554mm
Motorized Stage Size: 228mm×204mm, Moving Speed: 10mm/s, Resolution: 1µm
Power Supply: 220V
Dimensions (L×W×H): 600×320×710mm
Weight: 70kg
