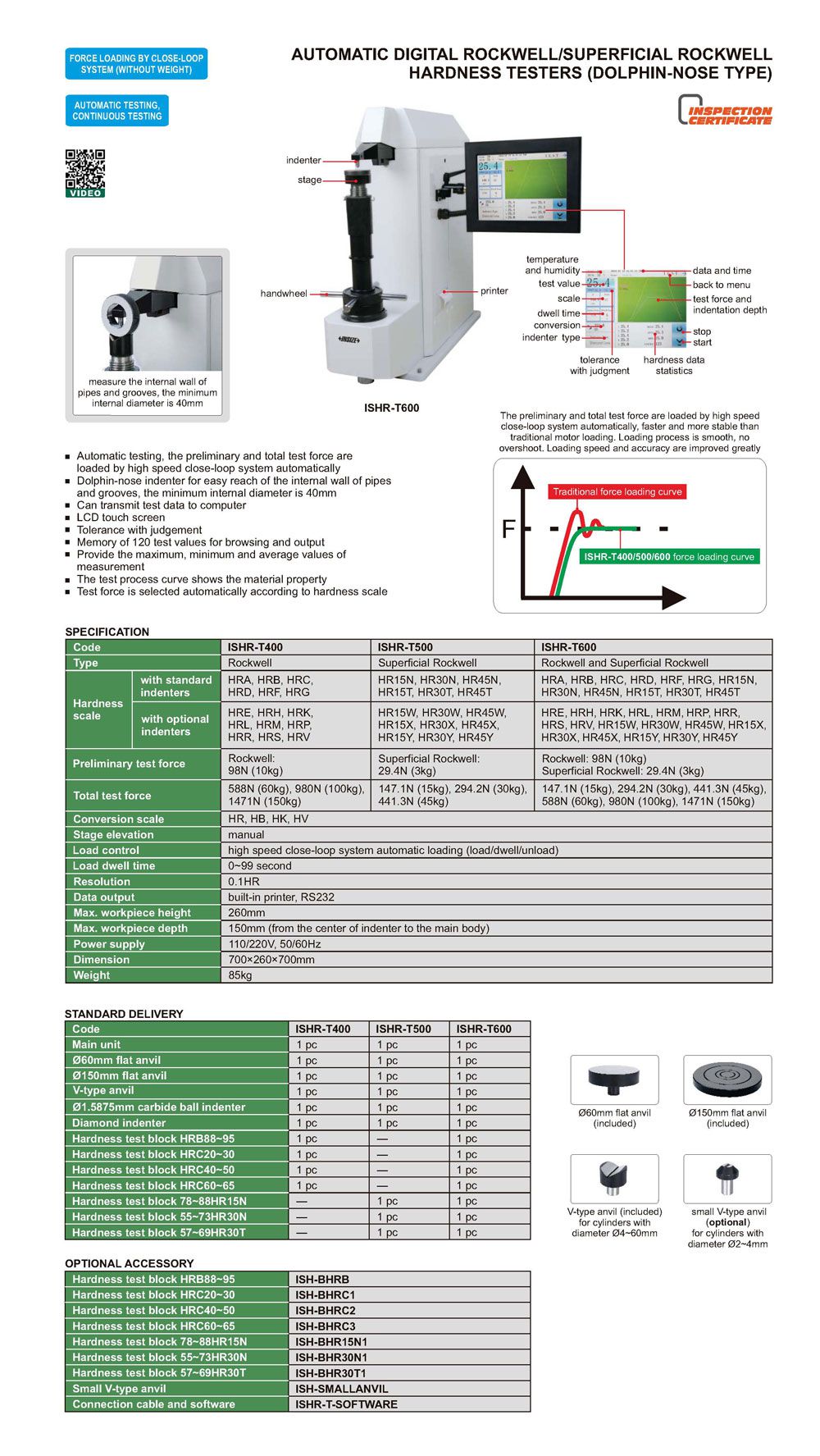

Hardness scale:
- With standard indenters: HRA, HRB, HRC, HRD, HRF, HRG, RH15N, RH30N, RH45N, RH15T, RH30T, RH45T
- With optional indenters: HRE, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV, RH15W, RH30W, RH45W, RH15X, RH30Y, RH45Y
Preliminary test force: 98N (10kg); 29.4N (3kg)
Total test force: 588N (60kg); 980N(100kg); 1417N(150kg); 147.1N (15kg); 294.2N(30kg); 441.3N(45kg)
Conversion scale: HR, HK, HB, HV
Stage elevation: manual
Load control: high speed close-loop system automatic loading (load/dwell/unload)
Load dwell time: 0~99 sec
Resolution: 0.1HR
Data output: built-in printer, RS232
Max. workpiece height: 260mm
Max. workpiece depth: 150mm (from the center of indenter to the main body)
Power supply: 110/220V, 50/60Hz
Dimension: 700x260x700mm
Weight: 85kg
Standard delivery:
- Main unit: 1pc
- Φ60mm flat anvil: 1pc
- Φ150mm flat anvil: 1pc
- V-type anvil: 1pc
- Diamond indenter: 1pc
- Φ1.5875mm carbide ball indenter: 1pc
- Hardness test block HRB88~95: 1pc
- Hardness test block HRC20~30: 1pc
- Hardness test block HRC40~50: 1pc
- Hardness test block HRC60~65: 1pc
- Hardness test block 78~88HR15N: 1pc
- Hardness test block 55~73HR30N: 1pc
- Hardness test block 57~69HR30T: 1pc
Optional accessory:
- Hardness test block HRB88~95
- Hardness test block HRC20~30
- Hardness test block HRC40~50
- Hardness test block HRC60~65
- Hardness test block 78~88HR15N
- Hardness test block 55~73HR30N
- Hardness test block 57~69HR30T
- Small V type anvil
- Connection cable and software
