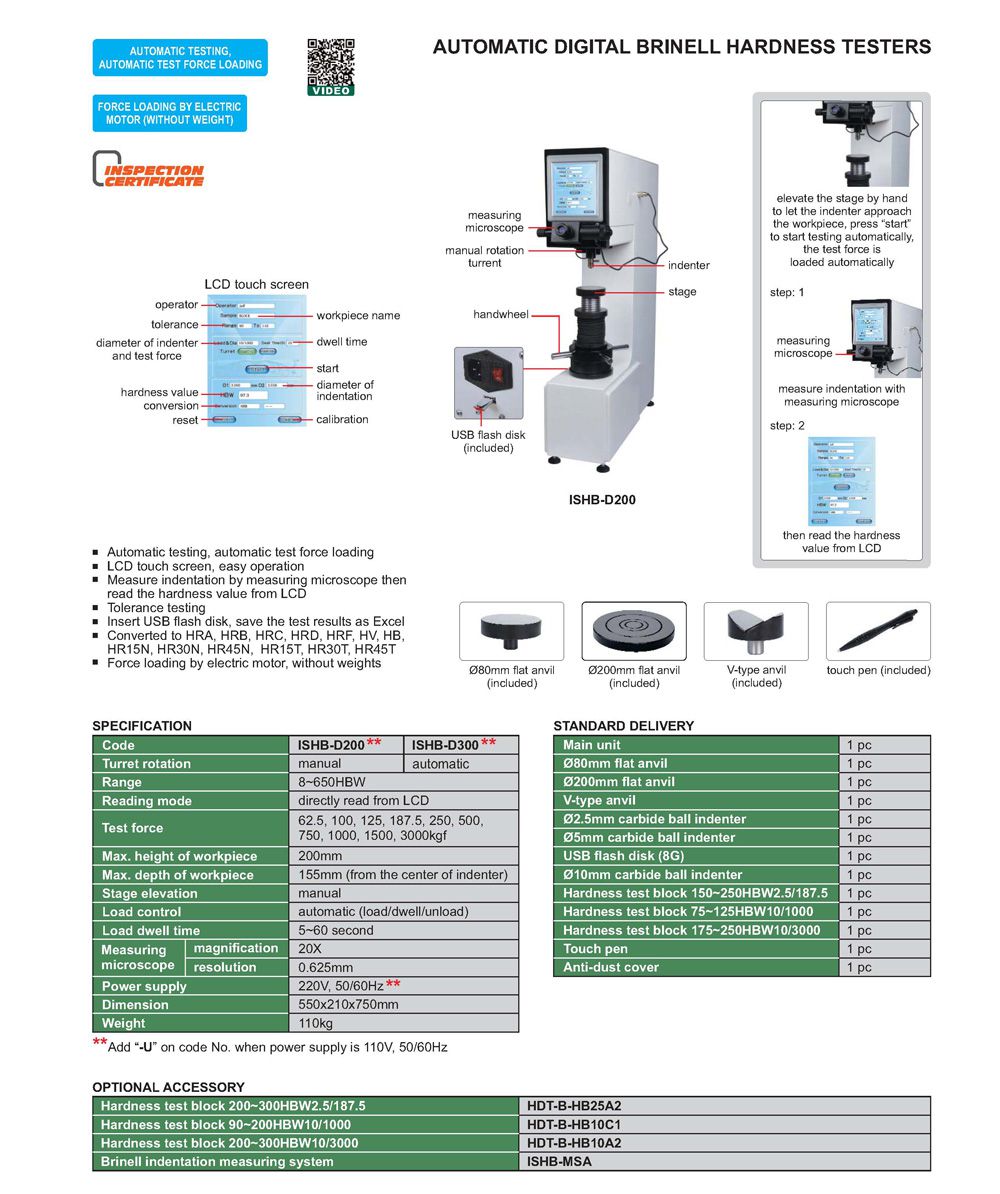

INSIZE ISHB-D300 ເຄື່ອງກວດຄວາມແຂງແບບດິຈິຕອລອັດຕະໂນມັດ Brinell (8~650HBW; Turret rotation: automatic)

Turret rotation: automatic

Range: 8~650HBW

Reading mode: directly read from LCD

Test force: 62.5; 100; 125; 187.5; 250; 500; 750; 1000; 1500; 3000kgf

Max. height of workpiece: 200mm

Max. depth of workpiece: 155mm (from the center of indener)

Stage elevation: manual

Load control: automatic (load/dwell/unload)

Load dwell time: 5~60 sec

Measuring microscope:

-Magnification: 20X

-Resolution: 0.625mm

Power supply: 220V, 50/60Hz

Dimension: 550x210x750mm

Weight: 110kg

Optional accessory:

-Hardness test block 200~300HBW2.5/187.5

-Hardness test block 90~200HBW10/1000

-Hardness test block 200~300HBW10/3000

-Brinell indentation measuring system

Standard delivery:

-Main unit: 1pc

-Φ80mm flat anvil: 1pc

-Φ200mm flat anvil: 1pc

-V-type anvil: 1pc

-Φ2.5mm carbide ball indenter: 1pc

-Φ5mm carbide ball indenter: 1pc

-USB flash disk (8G): 1pc

-Φ10mm carbide ball indenter: 1pc

-Hardness test block 150~250HBW2.5/187.5: 1pc

-Hardness test block 75~125HBW10/1000: 1pc

-Hardness test block 175~250HBW10/3000: 1pc

-Touch pen: 1pc

-Anti-dust cover: 1pc
