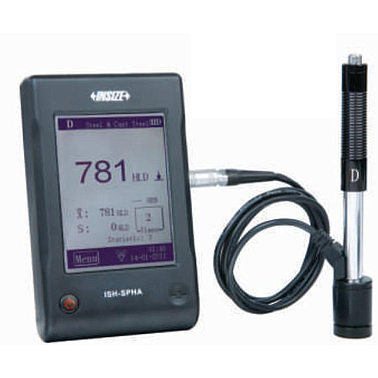

INSIZE ISH-SPHA ເຄື່ອງທົດສອບຄວາມແຂງກະດ້າງແບບເຄື່ອນທີ່

Specification :

Units hardness tester : HLD, HV, HB, HRC, HRB, HS, Mpa

- Steel & cast steel : 20-68(HRC), 38-100(HRB), 81-654(HB), 81-955(HV), 32-100(HS), 375-2639(Mpa)

- Cast iron : 93-334(HB)

- Stainless steel : 46-101(HRB), 85-802(HV), 85-655(HV)

- Cast aluminum alloy : 19-164(HB), 23-84(HRB)

- Brass : 40-173(HB), 13-95(HRB)

- Bronze : 60-290(HB)

- Copper : 45-315(HB)

Resolution : 1HL, 1HV, 1HB, 0.1HRC, 0.1HRB, 1HS, 1Mpa

Accuracy : ±6 HL (when HL = 800)

Connected with printer via bluetooth

Connected with computer via USB port

Touch screen, large display with backlight

800 test results can be saved

Language: English, Chinese, Italian, German, French and Russian

Automatic power off

Power supply : rechargeable battery

Dimension : 135x83x24mm

Weight : 350g

Standard production incuding :

- 1 main unit

- 1 Impact device D

- 1 Printer

- 1 Hardness test block

- 1 AC/DC adapter

- USB cable and software

- 1 Pen for touch screen

Optional accessory :

- Impact device DC : ISH-SPHA-DC

- Impact device C : ISH-SPHA-C

- Impact device D+15 : ISH-SPHA-D15

- Impact device DL : ISH-SPHA-DL

- Impact device G : ISH-SPHA-G
