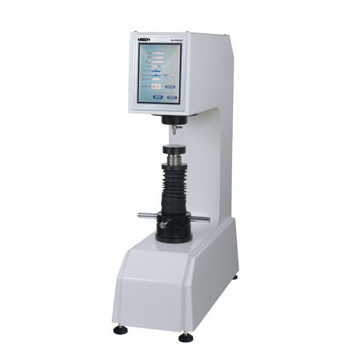

INSIZE ISH-RSR600 ຄູ່ມື Rockwell ແລະ Superficial Rockwell Hardness Tester (29.4N/3kgf or 98N/10kgf; 1417N/150kg)

Hardness scale:

-With standard indenters: HRA, HRB, HRC, HRD, HRF, HRG, RH15N, RH30N, RH45N, RH15T, RH30T, RH45T

-With optional indenters: HRE, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV, RH15W, RH30W, RH45W, RH15X, RH30Y, RH45Y

Preliminary test force: 98N (10kgf); 29.4N (3kgf)

Total test force: 588N (60kg); 980N(100kg); 1417N(150kg); 147.1N (15kg); 294.2N(30kg); 441.3N(45kg)

Stage elevation: manual

Load control: automatic loading (load/dwell/unload)

Load dwell time: 0~60 sec

Resolution: 0.1HR

Output: USB

Max. workpiece height: 220mm

Max. workpiece depth: 200mm (from the center of indenter )

Power supply: 110/220V, 50/60Hz

Dimension: 510x260x780mm

Weight: 70kg

Standard delivery:

-Main unit: 1pc

-Φ63mm flat anvil: 1pc

-Φ150mm flat anvil: 1pc

-V-type anvil: 1pc

-Diamond indenter: 1pc

-Φ1.5875mm carbide ball indenter: 1pc

-Hardness test block HRB88~95: 1pc

-Hardness test block HRC20~30: 1pc

-Hardness test block HRC60~65: 1pc

-Hardness test block 78~88HR15N: _

-Hardness test block 55~73HR30N: _

-Hardness test block 57~69HR30T: _

-USB flash disk (8G): 1pc

-Level: 1pc

-Touch pen: 1pc

-Anti-dust cover: 1pc

Optional accessory:

-Hardness test block HRB88~95

-Hardness test block HRC20~30

-Hardness test block HRC60~65

-Hardness test block 78~88HR15N

-Hardness test block 55~73HR30N

-Hardness test block 57~69HR30T

-Small V type anvil
