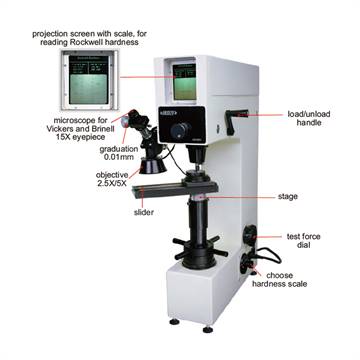

INSIZE ISH-BRV Brinell/Rockwell/Vickers Hardness Tester

SPECIFICATION

Rockwelltestload: 98N preload, 588,980,1471Ntotalload

Min. Rockwellreading: 0.5HR

Brinelltestload: 306, 613, 1839N

Vickerstestload: 294N

Stage elevation: manual

Loadcontrol: manual

Magnification of microscope: 37.5X/75X(selectable)

Max. workpiece height: 180mm

Max. workpiece depth: 200mm(fromthecenter ofindenter)

Dimension: 546×300×767mm

Weight: 90kg

STANDARDDELIVERY

Main unit: 1pc

Ø1.5875mm carbide ballindenter: 1pc

Diamond Rockwellindenter:1pc

Ø5mm Brinellindenter:1pc

Ø2.5mm Brinellindenter: 1pc

Vickersindenter: 1pc

Ø60mmflat anvilfor Rockwell : 1pc

Ø150mmflat anvilfor Rockwell: 1pc
