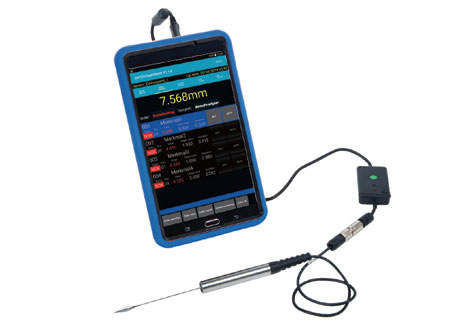

INSIZE ISE-DF10 ເຄື່ອງວັດແທກຊ່ອງຫວ່າງດິຈິຕອນ

Specification:

Code: ISE-DF10

Resolution: 0.1/0.01/0.001mm

Accuracy: ±0.03mm

RAM: 8GB

Output: USB, WiFi

Output format: XML, CSV

Probe (optional) specification:

Customisable measurement range: 0.35-6mm

Effective range: ±0.5mm

Accuracy: range: 0.35~2.0mm, accuracy: ±0.03mm range: 0.35~6.0mm, accuracy: ±0.04mm

Maximum customisable probe length: 500mm

Repetitive: 0.02mm

Measurement force: <3.5N

Measurement time: <1s

■ Compliance with corporate standards

■ Real-time measurement: display maximum value, minimum value current measurement value and measurement curve.

■ Group measurement: Target value and upper and lower tolerance can be set, automatic judgement of OK and NG.
