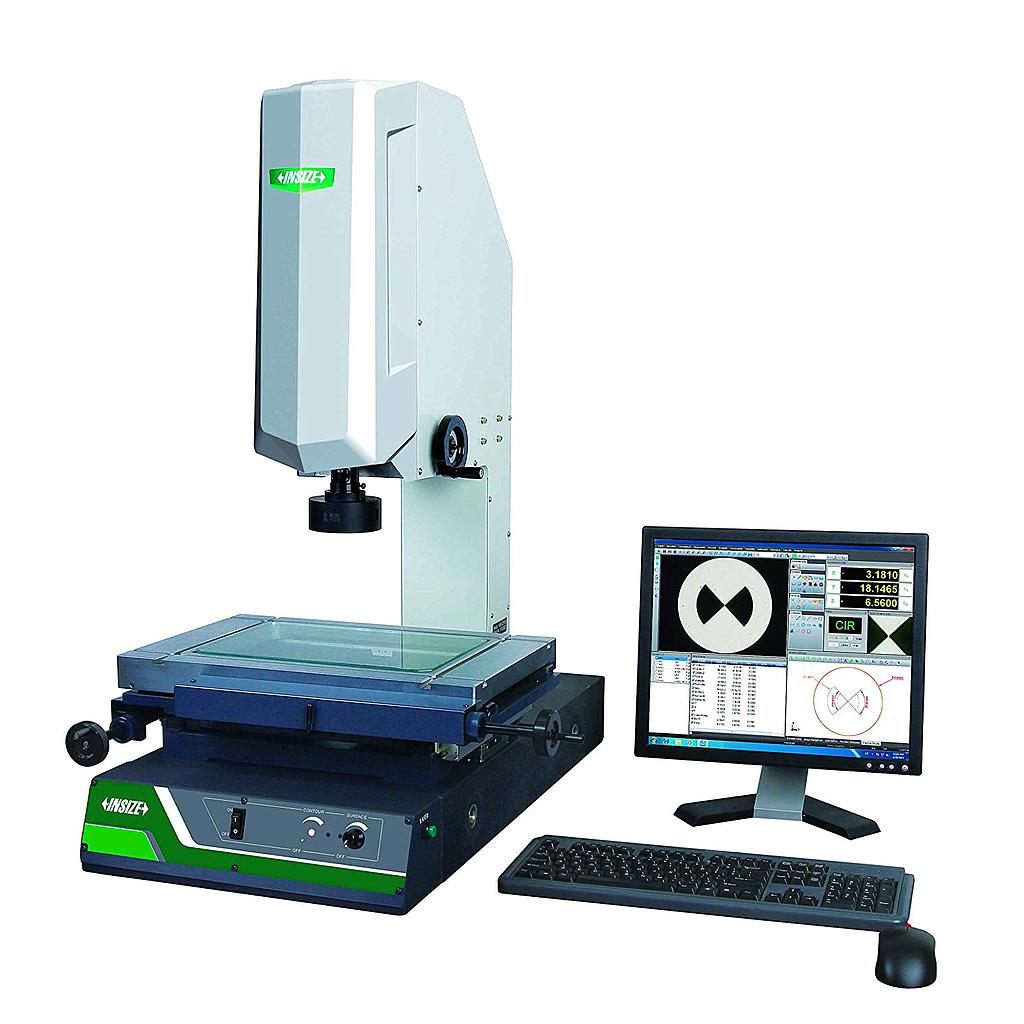

INSIZE ISD-Y430 ລະບົບການວັດແທກວິໄສທັດ (37.2X ~ 236.0X)
Measuring Range (X x Y x Z): 400x300x250mm
Stage Size: 606x466mm
Stage Glass Size: 450x350mm
Resolution of X/Y/Z Axis: 1µ
Accuracy of X/Y/Z Axis: <=(3+L/200)µ (L is the measuring length in mm)
Repeatability of X/T Axis: 2µm
Objective:0.7X ~ 4.5X (zoom)
Workign Distance: 92mm
Magnification: 37.2X ~ 236.0X (on 21.5" monitor)
Camera: 1/2" colour CCD, 1.3M pixel
Illumination: Surface and contour with adjustable LED
Max workpiece height: 200mm
Max workpiece weight: 20kg
Operation system: Windows 10/11
Drive Method: Manual
Power Supply: 220V, 50Hz
Dimension (L x W x H): 720x950x1020mm
Weight: 315kg
Standard Delivery
Main unit: 1pc
Computer: 1pc
Calibration glass chart: 1pc
Clay : 1pc
Anti-dust cover: 1pc
