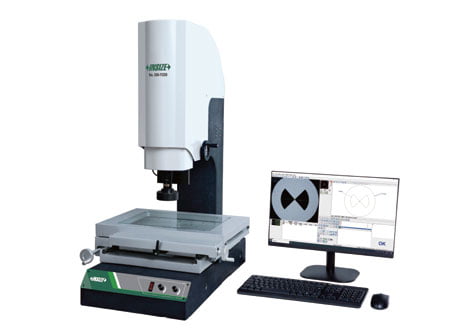

INSIZE ISD-Y210 ລະບົບການວັດແທກວິໄສທັດ

Measuring range (XxYxZ): 200x100x200mm

Stage size: 404x228mm

Glass stage size: 260x160mm

Resolution of X/Y/Z axis: 1µm

Accuracy of X/Y/Z axis: ≤(3+L/200)µm

Repeatability of X/Y/Z axis: 2µm

Objective: 0.7X - 4.5X (zoom)

View field (diagonal length): 1.0 - 6.6mm

Working distance: 92mm

Magnification: 37.2X - 236.0X (on 21.5" monitor)

Camera: 1/2" color CCD, 1.3M pixel

Illumination: surface and contour with adjustable LED

Max. height of workpiece: 200mm

Max. weight of workpiece: 20kg

Operation system: Window 10/11

Drive method: manual

Power supply: 220V, 50Hz

Dimension (LxWxH): 556x540x860mm

Weight: 180kg
