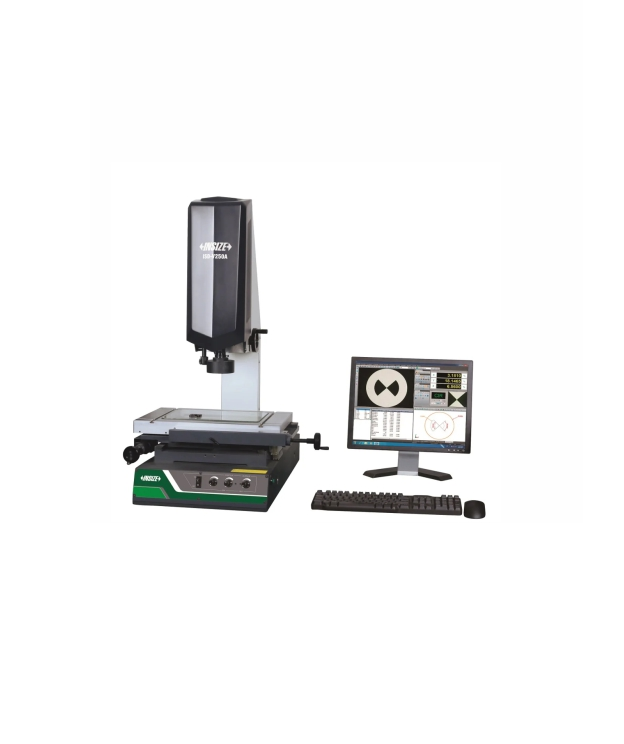

INSIZE ISD-V400ACL ລະບົບວັດແທກວິໄສທັດ (29X ~ 184X, 400x300x150mm)
Measuring Range (X x Y x Z): 400x300x150mm
Stage Size: 606x466mm
Stage Glass Size: 450x350mm
Resolution of X/Y/Z Axis: 0.5µm
Accuracy of X/Y/Z Axis: ≤(2.5+L/100)µm (L is the measuring length in mm)
Repeatability of X/T Axis: 2µm
Objective: 0.7X ~ 4.5X (zoom)
Workign Distance: 92mm
Magnification: 29X ~ 184X (on 21.5" monitor)
Camera: 1/3" color CCD, 0.3M pixel
Illumination: Surface and contour with adjustable LED
Max workpiece height: 150mm
Max workpiece weight: 20kg
Operation system: Windows 10/11
Drive Method: Manual
Power Supply: 110/220V, 50/60Hz
Dimension (L x W x H): 970x670x940mm
Weight: 240kg
Vision measuring system with coaxial light lens ( with computer)
