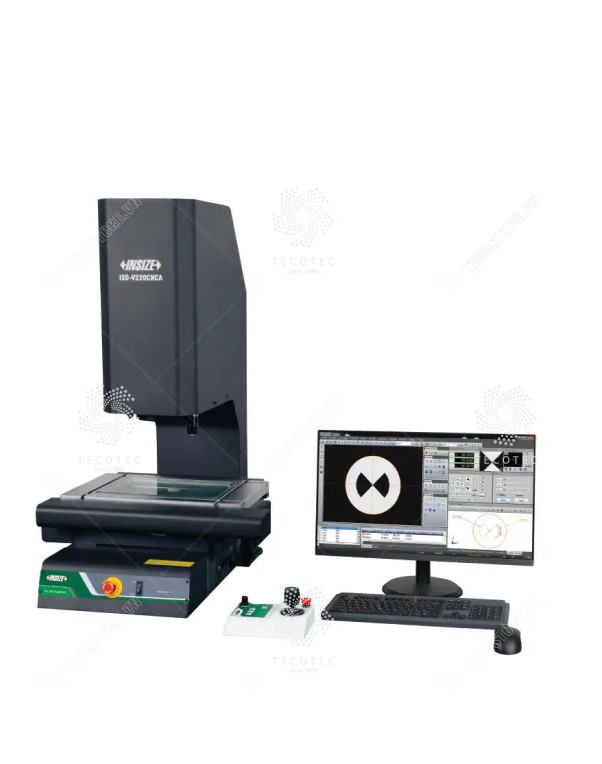

INSIZE ISD-V220ZA ລະບົບວິເຊັນການວັດຂະໜາດ CNC (220×120x150mm)
Motorized zoom lens
Measuring range (XxYxZ): 220×120x150mm
Stage size: 450x280mm
Glass stage size: 306×196mm
Resolution of X/Y/Z axis: 0.5μm
Accuracy of X/Y axis: ≤(2.5+L/100)μm (L is the measuring length in mm)
Repeatability of X/Y axis: 2μm
Objective: 0.7X-4.5X (zoom)
Working distance: 92mm
Magnification: 31.9X-188.7X (with motorized zoom lens, on 24" monitor)
Camera: giga-bit network camera
Illumination
surface: coaxial light, programmable segmented ring light
contour: adjustable LED light
View field (diagonal length): 1.5-10.8mm
Max. height of workpiece: 150mm
Max. weight of workpiece: 30kg
Operation system: Windows 7/8/10
Drive method: automatic
Power supply: 220V, 50/60Hz
Dimension (L*W*H): 760×600x900mm
Weight: 146kg
STANDARD DELIVERY
Main unit: 1pc
Software: 1pc
Computer 24" display: 1pc
Len with coaxial light: 1pc
Controller: 1pc
Calibration glass chart: 1pc
Laser positioner: 1pc
Clay: 1pc
Anti-dust cover: 1pc
