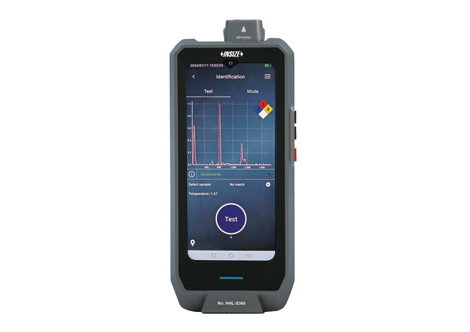

INSIZE HHL-S360 Handheld Raman Spectrometer (ປະເພດຂັ້ນສູງ) (1064nm)

Specification

Operative system: Android

Wavelength: 785±0.5nm

Wavenumber range: 200-2500cm⁻¹

Focus length: f=10mm

Resolution: 14cm⁻¹

Touch panel: 6.3", 1920×1080, Multi-Touch

Laser class: class 3B

Report output: Supports export of multi-information test reports (test results, mapping information, photo forensics, etc.)

Work hours: 4-6h

Communication interface: bluetooth, wifi

Battery: 5800mAh lithium battery

Operation temperature: -20~50°C

Dimension: 209x95x55mm

Weight: 1350g

Standard Delivery:

Main unit: 1 pc

Battery: 2pcs

Charger: 1pc

Sample spoon: 1pc

Disposable droppers: 5pcs

Focus lens: (1=15mm): 1pc

vertical liquid cuvette (12mm): 1pc

Horizontal liquid cuvette (12mm): 1pc

Push probe (WD=0.2mm)

Probe for solid material (WD=0.2mm): 1pc

Probe for solid material (WD=5mm): 1pc

Fields of application:

Plastics: PP, PS, PVS, PA, ABS, ect.

drugs: heroin, methamphetamine, cocaine, ketamine, fentanyl, alprazolam, etc.

food safety: food additives, pesticide and veterinary drug residues, illegal additives, etc. gemstones and minerals: authenticity of gemstones, color identification, inclusions analysis, etc. petrochemicals: Oil quality analysis, Chemical raw materials, Intermediate by-products, etc. pharmaceutical industry: identification of raw materials and excipients, identification of Chinese medicine additives, qualitative identification of drugs, etc.

others: scientific archaeology, biomedical diagnostics, environmental protection, etc.
