Standard Delivery

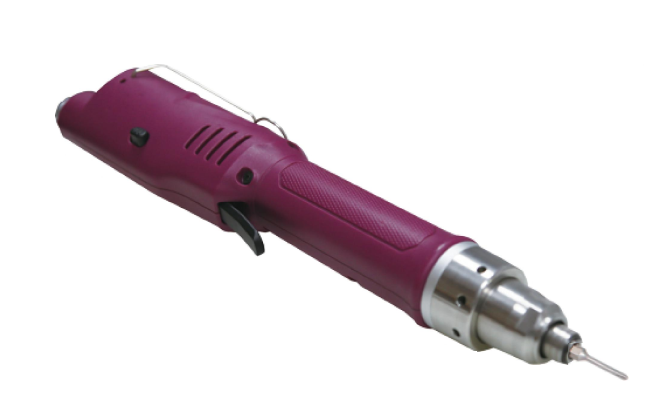

Electric screwdriver: 1pc
Controller: 1pc
Cross screwdriver: 1pc
Tool connection cable: 1pc
USB transmission cable: 1pc
Specification
Code: HES-E902B
Torque range: 0.80~4.30Nm
Motor power: AC90W
Max. speed: 1500rpm
Applicable screw outside diameter: 3.5~5.5mm
Applicable screwdriver head: Ø6.35mm hexagonal
Controller: type B
Power Supply: AC 200 ~ 230V ± 10%, 50 ~ 60HZ
Display operation interface: touch screen menu operation mode, 3 function buttons+3 LED indicators
Torque accuracy: ± 5% at 30% ~ 80% of maximum output torque, ± 8% in other range
Dimension:
electric screwdriver: 317x59.5 × 47.5mm
Controller: 235 × 160 × 345mm
Weight:
electric screwdriver: 1060 g
controller: 5500g
■ Highly efficient heat dissipation setting, ultra-low noise handling
■ Permanent magnet synchronous servo motor and high-precision reducer power transmission mechanism
■ High-precision angle sensor (resolution 1°) and two-color LED indication of locking status
■The safety level conforms to the relevant provisions of GB3883/IEC60745 and other standards
■ 12 task modes, each task can be configured with 8 different torque parameters
■ Locked data is stored in EXCEL on the hard disk for 600 days
■ Built-in servo drive for precise control of torque, angle and speed
■ Provide graphical tool for process optimization and diagnostic
■ Provide programmable IO and RS485 communication port for process control and data transmission
■ Physical buttons for assisted operation and they are monitored by LED lights
