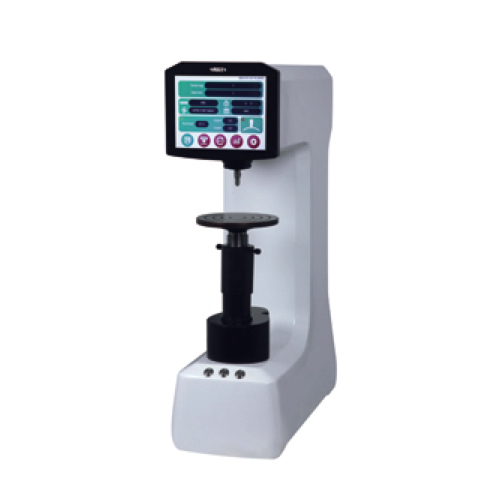

INSIZE HDT-ST300 ອັດໂນມັດ Digital Rockwell (588N (60kg) ~ 1471N (150kg))

Type: Rockwell

Measurement range: 20~95HRA, 10~100HRB, 10~70HRC

Hardness scale:

With indenter included: HRA, HRB, HRC, HRD, HRF, HRG

With optional indenter: HRE, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV

Preliminary test force: 98N/10kgf for Rockwell

Test force: 588N (60kg), 980N (100kg), 1471N (150kg)

Stage elevation: Automatic up, down, and return

Load control: Automatic (initial test force, main test force loading/holding/unloading)

Resolution: 0.1 HR

Load dwell time: 2~60 seconds

Max. workpiece height: 230mm

Max. testing width: 170mm

Power supply: 100~240V, 50/60Hz

Dimension: 475×200×700mm

Weight: 70kg

Datasheet

STANDARD DELIVERY

Main unit: 1 pc

Diamond indenter: 1 pc

Ø1.5875mm carbide ball indenter: 1 pc

Ø150mm flat anvil: 1 pc

Ø58mm flat anvil: 1 pc

V-type anvil: 1 pc

Hardness test block HRC20~30: 1 pc

Hardness test block HRC40~50: 1 pc

Hardness test block HRC60~70: 1 pc

Hardness test block HRBW80~100: 1 pc

Hardness test block HRA80~90: 1 pc

Hardness test block HR15N80~90: _

Hardness test block HR30N65~80: _

Hardness test block HR30TW70~85: _

Printer: 1 pc

Anti-dust cover: 1 pc
