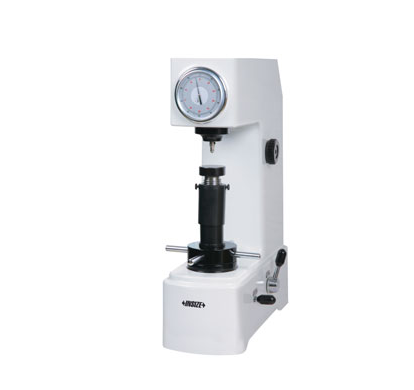

INSIZE HDT-RW160 ເຄື່ອງທົດສອບຄວາມແຂງຂອງ Rockwell ຄູ່ມື (588N; 980N; 1417N)

Hardness scale: HRA, HRB, HRC, HRF, HRG

Preliminary test force: 98N (10kg)

Test force: 588N (60kg); 980N(100kg); 1417N(150kg)

Display: analogue

Stage elevation: manual

Load control: manual

Min. reading: 0.5HR

Max. workpiece height: 170mm

Max. workpiece depth: 135mm (from the center of indenter)

Dimension: 466x238x630mm

Weight: 70kg

Standard delivery:

-Main unit: 1pc

-Φ58mm flat anvil: 1pc

-Φ150mm flat anvil: 1pc

-V-type anvil: 1pc

-Diamond indenter: 1pc

-Φ1.5875mm steel ball indenter: 1pc

-Φ1.5875mm steel ball: 5pcs

-Level: 1pc

-Hardness test block HRA80~88: 1pc

-Hardness test block HRB85~95: 1pc

-Hardness test block HRC20~30: 1pc

-Hardness test block HRC35~55: 1pc

-Hardness test block HRC60~70: 1pc

-Anti- dust cover: 1pc

Optional accessory:

-Hardness test block HRA80~84

-Hardness test block HRB88~100

-Hardness test block HRC20~30

-Hardness test block HRC35~55

-Hardness test block HRC60~70

-Small V type anvil
