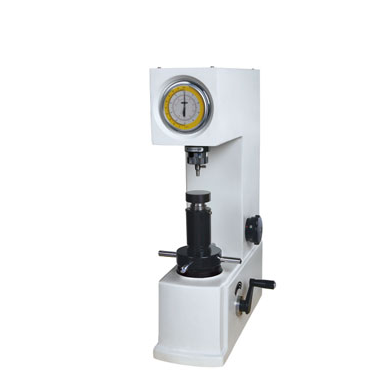

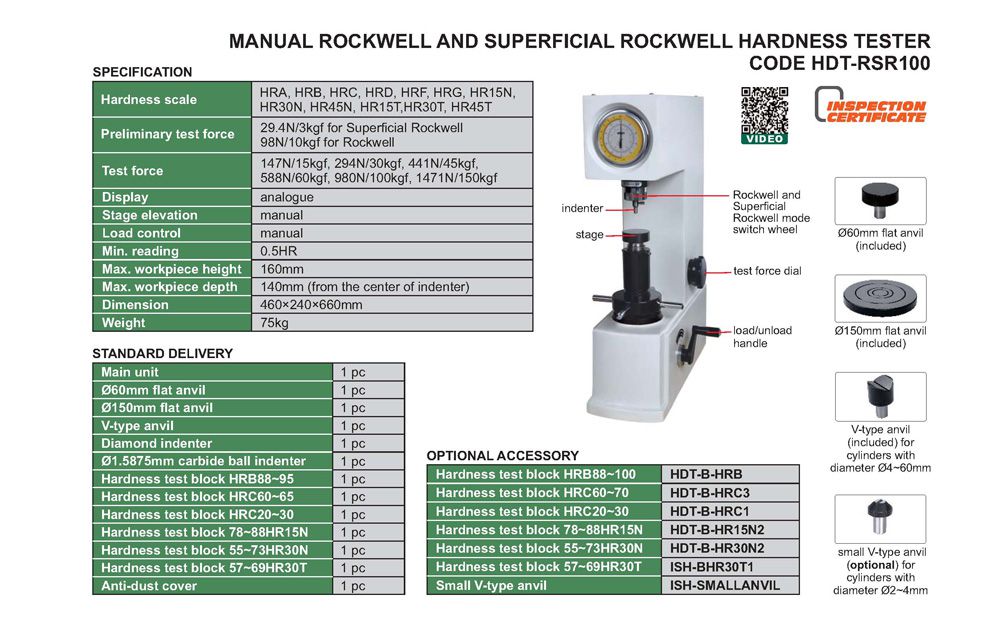

INSIZE HDT-RSR100 ຄູ່ມື Rockwell ແລະ Superficial Rockwell Hardness Tester (1417N)

Hardness scale:HRA, HRB, HRC, , HRD, HRF, HRG, RH15N, RH30N, RH45N, RH15T, RH30T, RH45T

Preliminary test force: 29.4N/3kgf for Superficial Rockwell; 98N/10kgf for Rockwell

Total test force: 147N/15kgf; 294N/30kgf; 441N/45kgf; 588N /60kgf; 980N/100kgf; 1417N/150kgf

Display: analogue

Stage elevation: manual

Load control: manual

Min. reading: 0.5HR

Max. workpiece height: 160mm

Max. workpiece depth: 140mm (from the center of indenter to the main body)

Dimension: 460x240x660mm

Weight: 75kg

Standard delivery:

-Main unit: 1pc

-Φ60mm flat anvil: 1pc

-Φ150mm flat anvil: 1pc

-V-type anvil: 1pc

-Diamond indenter: 1pc

-Φ1.5875mm carbide ball indenter: 1pc

-Hardness test block HRB88~95: 1pc

-Hardness test block HRC20~30: 1pc

-Hardness test block HRC60~65: 1pc

-Hardness test block 78~88HR15N: 1pc

-Hardness test block 55~73HR30N: 1pc

-Hardness test block 57~69HR30T: 1pc

-Anti-dust cover: 1pc

Optional accessory:

-Hardness test block HRB88~95

-Hardness test block HRC20~30

-Hardness test block HRC60~65

-Hardness test block 78~88HR15N

-Hardness test block 55~73HR30N

-Hardness test block 57~69HR30T

-Small V type anvil
