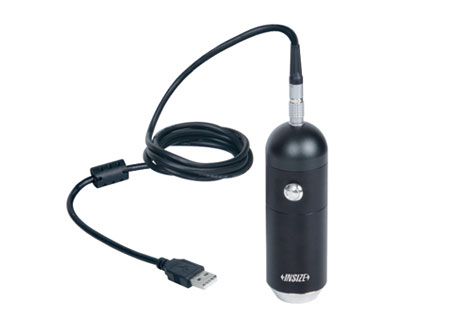

INSIZE HDT-MB325 Brinell Indentation ລະບົບການວັດແທກອັດຕະໂນມັດ (Ø1-2mm, Ø2-4mm)

Range of indentation diameter: Ø1-2mm, Ø2-4mm

Appliable Brinell indenter: Ø2.5mm, Ø5mm, Ø10mm

Diameter measuring accuracy: ±0.5%

Hardness range: 15~650HBW

Camera Pixel: 2M

Dimension: 44x40x120mm

Weight: 275g

Standard Delivery:

Main unit: 1pc

Software: 1pc

■ Automatic or manual measurement of the indentation diameter and calculation of the corresponding Brinell hardness value.

■ Automatically calculates statistical values such as mean and variance of measured hardness.

■ Automatic labelling of abnormal values, automatic alarm when hardness exceeds the specified value.

■ Measurement data including indentation images can be stored on file

■The system can automatically generate reports in Word or Excel format
