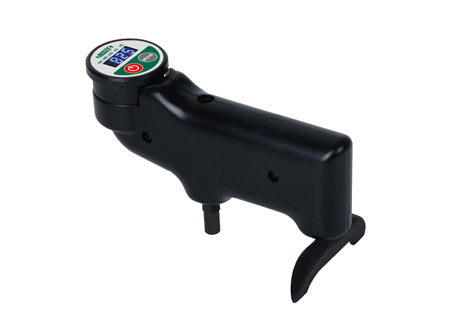

INSIZE HDT-DB337 ເຄື່ອງທົດສອບຄວາມແຂງຂອງອາລູມິນຽມດິຈິຕອນ (0-100HBa)

SPECIFICATION

Hardness range: 0-100HBa

Effective range: 40-90HBa (equal to 25~135HBW)

Min. reading: 0.1HBa

Accuracy:

±2.0HBa(at 42-52HBa)

±1.0HBa(at 84-88HBa)

Repeatability

±2.5HBa(at 42~52HBa)

±1.5HBa(at 84~88HBa)

Min. workpiece thickness: 1.5mm

Dimension: 143×40x87mm

Weight: 260g

STANDARD DELIVERY

Main unit: 1pc

Full scale calibration block: 1pc

Hardness test block: 2pc

Spare pin: 1pc

Wrench: 1pc

Power adapter: 1pc

■ To measure the hardness of workpieces made of pure aluminum, aluminum alloy, fiber reinforced plastic, hard plastic, etc.

■ The support can be rotated, no need to disassemble

■ Can be converted to HW, HRE, HRF, HV, HB values

■ Full scale one key reset, no need to disassemble for external calibration

■ According to ASTM B648, ASTM HD2583-2007
