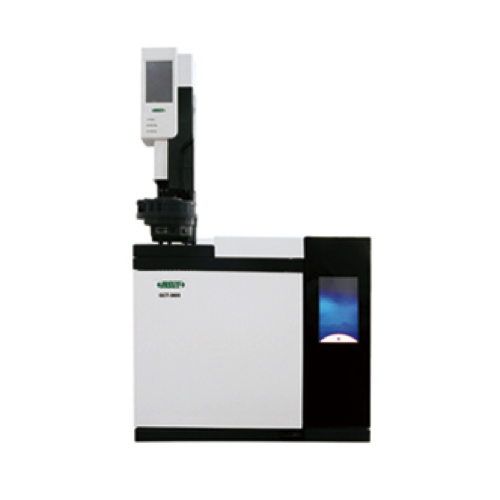

INSIZE GCT-3600 Gas Chromatography (ປະເພດຂັ້ນສູງ) (0-100 Psi, 0-1000 mL/min)
Analysis material: hydrocarbons, carbonaceous organic matter (COC), volatile organic compound (VOCs), etc.
Control System:
Temperature control area: 8 signals
Temperature control range: above room temperature 4-450°C, incremental 1°C, accuracy: ±0.1°C
Program temperature rise rate: 0.1-120°C/min
Air circuit control: full electronic pressure flow control
Measurement range: 0-100 Psi (pressure), 0-1000 mL/min (flow rate)
Resolution: 0-0.1 Psi (pressure), 0-1 mL/min (flow rate)
External control: 8 signals, auxiliary control output 2 signals
Program temperature rise step: 16 steps
Detector:
Type: hydrogen flame ionization detector (FID)
Detection limit: ≤3×10⁻¹² g/S (n-hexadecane)
Baseline noise: ≤1×10⁻¹⁴ A (after 2 hours of instrument stabilization)
Baseline drift: ≤1×10⁻¹³ A/30min (after 2 hours of instrument stabilization)
Auto-sampler:
Carrier gas: N₂≥99.999%
Natural gas: H₂≥99.999%
Combustion gas: dry oil-free air
Syringe specifications: 1, 5, 10, 25, 50, 100, 250, 500 µL
Vial position: 24 bits (customizable expansion to 160 bits)
Solvent bottle position: 2 bits (customizable expansion to 11 bits)
Vial volume: 2 mL
Injection volume: 0.1-250 µL
Feed rate: fast, slow, user-defined
Feed mode: general, continuous, PTV, user-defined
Gas supply:
Carrier gas: N₂≥99.999%
Natural gas: H₂≥99.999%
Combustion gas: dry oil-free air
Data processing:
• can simultaneously process data from up to 5000 chromatographs
• can automatically generate chromatograph files
• can name chromatograph folders by time and shift sequence
Communication interface: ethernet: IEEE802.3
Working environment: 15-30°C, ≤85% RH
Power supply: AC 220V, 50 Hz, 3 kW
Dimension (L×W×H): 560×530×480 mm
Weight: 60 kg
STANDARD DELIVERY:
Main unit: 1 pc
Auto-sampler: 1 pc
Computer: 1 pc
Software: 1 pc
Detector (FID): 1 pc
Hydrogen generator: 1 pc
Air generator: 1 pc
Gas purifier: 1 pc
Column (SE-54): 1 pc
Consumable and spare parts: 1 set*
*Including injection needles, injection pads, graphite pads, gas connection lines, and other common consumables and tools
