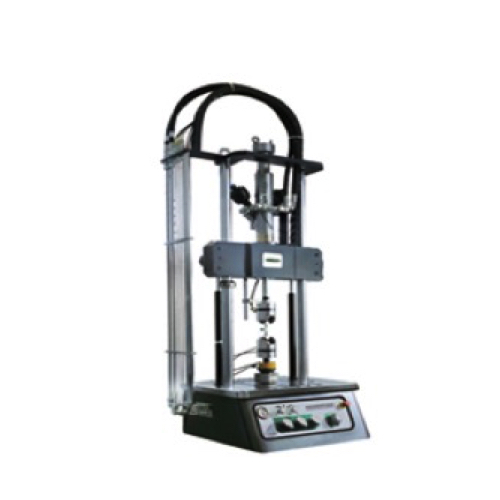

Max. test force: 50kN
Accuracy of static force measurement: ±0.5% of indicated value
Accuracy of dynamic force measurement: ±2% of indicated value
Range of test force: 0.5%~100%FS
Actuator stroke*: ±75mm
Accuracy of displacement measurement: linearity error <40µm, repeatability <0.001%FS
Range of frequency: 0~100Hz
Concentricity: ≤5%
Vertical test space*: 1120mm
Effective test width*: 540mm
Test waveform: sine wave, square wave, triangle wave, ramp wave, random wave, spectral loading, sweep frequency, etc.
Stiffness: 5×10⁸N/m
Dimension (W × D × H): 870×550×2000mm
Weight: 1100kg
Power supply: AC 380V, 30, 50Hz
*Can be customized according to test requirements
