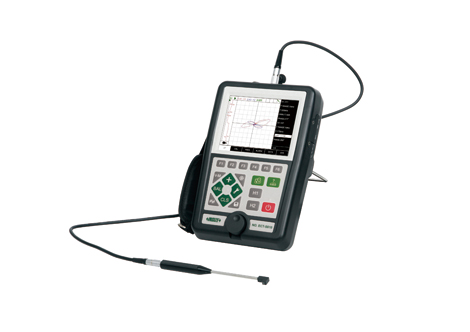

INSIZE ECT-S610 ການກວດຫາຂໍ້ບົກພ່ອງໃນປະຈຸບັນຂອງ Eddy ແບບ Portable (50Hz-10MHz)

Detection channel: channel1 (X1-Y1), channel2 (X2-Y2), mixing channel

Detection frequency: 2

Transmission frequency: 50Hz-10MHz

Driving voltage: 8 adjustable steps

Phrase adjustment: 360° (1° step)

Gain adjustment: 0-90dB (step 0.1dB)

Sampling frequency: 40MHz, 12-bit data acquisition

Digital filtering: high pass: 1Hz-1950Hz, low pass: 3Hz-2000Hz

Alarm mode: amplitude and phase alarm

Alarm box: alarm frame modes: off, amplitude-phase, half-amplitude phase, square box

Probe type: bridge

Display: time base, impedance plane

Auxiliary measurements: automatic/manual measurement of amplitude and phase

Balance mode: digital balance

Display mode: dot, line, fade mode

Interface: Q9 interface, USB HOST, Mini HDMI

Environmental temperature: -10-50°C

Relative humidity: 20~95%RH

Power supply: rechargeable lithium battery, working time 6-8h

Dimension: 251x171x52mm

Weight: 1.5kg

STANDARD DELIVERY

Main unit: 1pc

Pen probes 50K-500KHz: 1pc

Pen probes 500K-3MHz: 1pc

Right angle probes 50K-500KHz: 1pc

Right angle probes 500K-3MHz: 1pc

Aluminum alloy flat test block: 1pc

Stainless steel plate test block: 1pc

Hexagon bar wrench: 1pc

Probe connecting cable: 1pc

Mainframe backpack: 1pc

USB disk: 1pc

Power adapter: 1pc

■ Real-time impedance plane and time base sweep display modes available

■ Easy to operate menu interface, with universal knob operation is more convenient and fast

■ Analyzes the signal waveform of the entire detection process, automatically measuring phase and amplitude.

■ With amplitude and phase alarms and settable boundaries

■ 5.7" industrial-grade TFT display, can work in outdoor and direct sunlight environment

■ 500 sets of data, 500 sets of parameters, or 40 minutes of video storage

■ Applicable to all kinds of metal materials and parts, such as weld cracks, copper pipe, seamless steel pipe, stainless steel pipe, folding, scars, pits, cracks, delamination and other defects, has a high sensitivity
