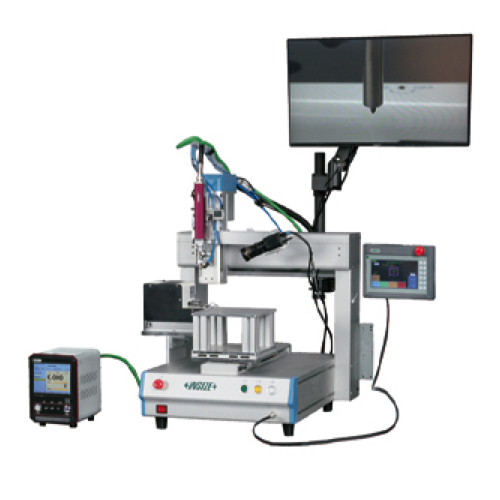

INSIZE ATM Desktop ເຄື່ອງ Tightening ອັດຕະໂນມັດ
Working Platform:
Working Direction: Vertically down
Max. Operating Speed:
XY-axis: 800mm/s
Z-axis: 400mm/s
Max. Load:
XY-axis: 10kg
Z-axis: 5kg
Positioning Repeatability: ±0.05mm
Control Axis: XYZ axis
Number of Preset Positioning Programs: 80
Number of Positioning Points for One Program: 350
Number of I/O Ports: 4 input, 4 output
Intelligent Electric Screwdriver*:
Applicable Torque Range: 0.01~7.50N.m
Applicable Screw Outside Diameter: 1.0~7.0mm
Torque Accuracy:
±5% at 30%~80% of maximum output torque
±8% in other range
Resolution of Angle: 1°
Number of Preset Tightening Programs: 12
Number of Preset Callable Parameters: 8
Number of I/O Ports: 8 input, 8 output
Power Supply: AC 220V, 50Hz
Pressure Supply: 0.5~0.7Mpa
Environmental Requirement: Temperature 0~40°C, Relative Humidity 20~85%
*Intelligent screwdrivers are available with different torque ranges for various tightening screws.
STANDARD DELIVERY
Working Platform: 1 set
Intelligent Electric Screwdriver: 1 set
Screw Feeding System: 1 set
Camera-Assisted Positioning System: 1 set
Control Program Main Unit: 1 set
Positioning Control Box: 1 set
Positioning Fixture: 1 set
Electric Screwdriver Controller: 1 set
Suitable Screwdriver Head: 1 set
