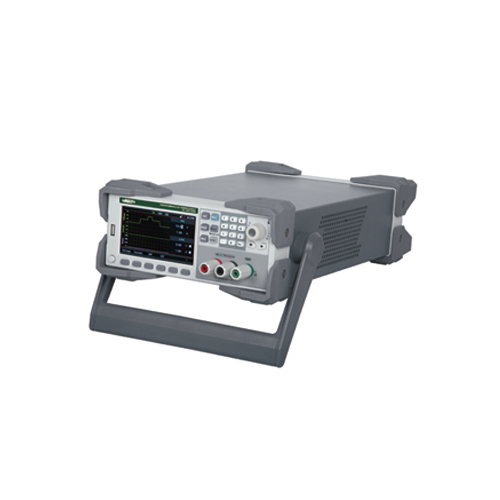

INSIZE 9931-HD20 ການສະຫນອງພະລັງງານ DC ທີ່ສາມາດວາງແຜນໄດ້ (80V, 20A, 400W)
Rate output voltage: 80V
Rate output current: 20A
Maximum output power: 400W
Voltage:
Setting resolution: 10mV
Setting accuracy: <0.01% + 20mV
Readback resolution: 10mV
Readback accuracy: <0.01% + 20mV
Load regulation: <0.01% + 10mV
Line regulation: <0.01% + 2.5mV
Temperature coefficient: (0.02% + 10mV) / °C
Ripple: <50mVp-p
Current:
Setting resolution: 10mA
Setting accuracy: <0.1% + 10mA
Readback resolution: 10mA
Readback accuracy: <0.1% + 20mA
Load regulation: <0.1% + 5mA
Line regulation: <0.1% + 2.5mA
Temperature coefficient: (0.03% + 10mA) / °C
Ripple: <15mArms
Work condition: temperature: 0°C ~ 40°C, humidity: 20%RH ~ 80%RH
Storage condition: temperature: -20°C ~ 70°C
Power supply: 220V ±10%, 50Hz/60Hz
Dimension: 214×88×393mm
Weight: 4.65kg
STANDARD DELIVERY:
Main unit: 1 pc
RS-232 cable: 1 pc
USB cable: 1 pc
Spare Fuse: 2 pcs
