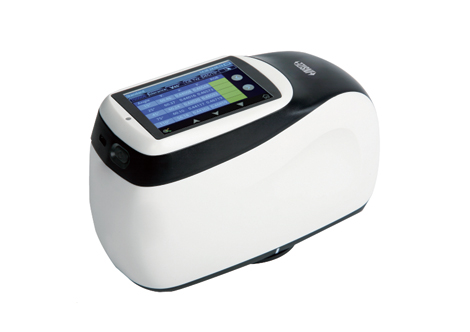

INSIZE 9710-MS45 spectrophotometer ຫຼາຍມຸມ (400nm-700nm)

Specification

Measurement geometry: 5 measurement angles (5 illumination sources, 1 receiver)

Measuring angle: 45° receiver: 45as15°, 45as25°, 45as45, 45as75°, 45as110"

Lighting source: full spectrum LED light source with blue enhancement

Lamp life: 5 years, 3 million times measurements

Spectrophotometric mode: concave grating

Sensor: 256 image element double array CMOS image sensor

Wavelength range: 400nm-700nm

Wavelength interval: 10nm

Measurement range: 0~600%

Semiband width: 10nm

Measuring aperture: illuminant Ø23mm/sampling Ø12mm

Color space: CIE LAB, XYZ, Yxy, Lch, Bxy, DIN Lab99

Color difference formula: ΔΕ*ab, ΔΕ*94, ΔΕ*cmc (2: 1), ΔΕ*cmc (1: 1), ΔΕ*00, DINAE99, ΔΕ DIN6175

Other colorimetric index: flop index

Observer angle: 2°/10°

Illuminant: D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5), F11 (TL84), F12 (TL83/U30)

Measuring time: approx 1 second for one angle, approx, 5 seconds for all angles

Repeatability: spectral reflectance: standard deviation within 0.08% chromaticity value: ΔE*ab 0.03 (when a white calibration plate is measured 30 times at 5 second intervals after white calibration)

Reproducibility: ΔE*<0.10, avg on the gray tile of BCRA tile set, ΔE*<0.25, avg on the color BCRA tile set

Spectrophotometric mode: 0.2ΔE*00 (avg on reference series II BCRA tile set)

Trigger mode: pressure sensing, trigger, key trigger, software trigger

Measuring mode: single measurement, average measurement (1-99), continuous measurement (1~99)

Locating method: color camera preview

Power: Li-ion battery, 3.7V, 3200mAh, continuous test 6000 times within 8 hours of full charge

Display screen: 3.5-inch TFT color LCD, capacitive touch screen

Interface: USB, bluetooth 5.0

Date storage: standard 1000 pcs, sample 4000 pcs

Calibration: built-in white board parameters, external white board, black light trap

Calibration interval: 4 hours, 8 hours, 24 hours, startup calibration

Dimension: 195X83X128mm

Weight: 1kg

Standard delivery

Main unit: 1pc

Black light trap: 1pc

White board: 1pc

Software and USB cable: 1pc

Power adapter: 1pc

Bluetooth receiver: 1pc

- Adopt 5 illumination sources, 1 receiver to measure 5 measurement angles at the same time

- Touch screen can display all angle measurement results, more intuitive view of the comprehensive data

- Full spectrum illumination measurement is more professional to avoid spectrum loss

- Provide 6 color spaces, multiple observation light sources

- Using concave grating spectrophotometric technology, with higher resolution, makes color measurement more accurate

- Built-in color camera positioning, can accurately judge the object measured position, and improve the measurement efficiency and accuracy

- Multiple functions, the screen can display various data intuitively
