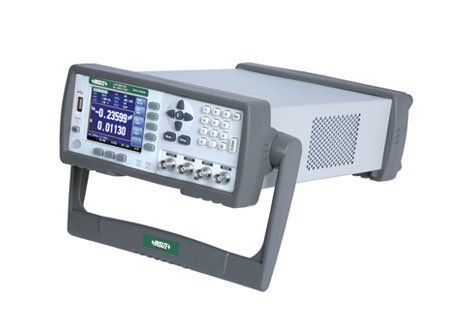

INSIZE 9653-YS01 LCR ແມັດ (10Hz~100kHz)

Specification

Parameters: Cs-Rs, Cs-D, Cp-Rp, Cp-D, Lp-Rp, Lp-Q, Ls-Rs, Ls-Q, G-B, R-X, Z-θrad, Z-θrad, DCR

Monitor parameters: Z, D, Q, θrad, θdeg, R, X, Y, B, Vac, lac,  Δ, Δ%

Test frequency: 10Hz~100kHz

Signal level: voltage: 10mV~2V; current: 100μA~20mA

DC bias: -2.5V~+2.5V

Source resistance: 30Ω, 50Ω, 100Ω

Range: auto range, manual range and nominal range, 9 levels of ranges

Maximum reading: main parameter: 999999; secondary parameter: 999999

Test speed: fast: 40 t/s; medium speed: 10 t/s; slow: 3 t/s

Comparator: 11-level sorting, 9-4evel GD, 1-level NG, 1-4evel AUX

Interface: RS232 interface, RS485 interface, USB interface, HANDLER interface

Power supply: AC: 100V-240V, 50/60Hz

Dimension (LxWxH): 350x264x107mm

Weight: 2.6kg

Standard Delivery:

Main unit: 1pc

Kelvin clip lead: 1pc

Test fixture: 1pc

Short-circuit plate: 1pc

■ 3.5-inch TFT LCD display

■ Basic accuracy: 0.05%

■ Auto level control

■ Calibration function: full-scale open circuit and short-circuit sweep frequency clear, three groups of users point frequency calibration.

■ List test: cyclic scanning of up to 10 groups of frequency or level is performed and the results are cornpared to the set values.

■ Comparator: 11-level sorting function, up to 999,999 measured parts can be counted.
