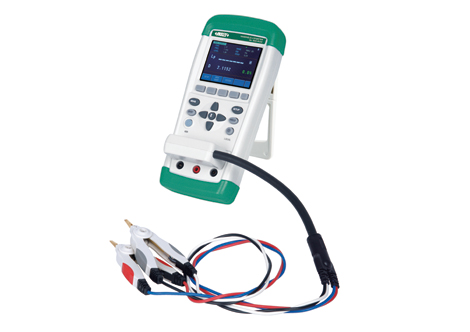

INSIZE 9652-RC02 ເຄື່ອງວັດແທກ LCR ມືຖື (0.2%; 8 levels)

Specification

Measuring parameters: C-D, C-Q, C-R, L-D, L-Q, L-R, L-Rdc, R-Q, R-X, R-Rdc, Rdc, Z-D, Z-Q, Z-er, Z-ed

Range: 8 levels, auto range or hold range

Basic accuracy: 0.2%

Test frequency: 50Hz, 60Hz, 100Hz, 120HZ, 200Hz, 400Hz, 500Hz, 1kHz, 2kHz, 4kHz, 5kHz, 10kHz, 20kHz, 40kHz, 50kHz, 100kHz

accuracy: 0.02%

Signal level: 0.1V, 0.3V, 0.7V, 1V; accuracy: 10%

Test speed: slow 2.5 times/sec, fast 10 times/sec

Interface: USB-C Interface: support HID and VCOM communication, compatible with SCPI command

Operation environment: 0°C-40°C, <80%RH

Working time: 50% brightness: 9h; 100% brightness: 7h

Power supply: rechargeable Li-ion battery

Power: <1.5W

Dimension: 195x90x41mm

Weight: 380g

Standard Delivery

Main unit: 1pc

Kelvin clip lead: 1pc

SMD tweezers lead: 1pc

Short-circuit plate: 1pc

■ Automatic measure inductance (L), capacitance (C), resistance (R), impedance (Z), quality factor (Q), dissipation factor (D), phase (0) and DC resistance (DCR)

■ Internal trigger

■ Data hold

■ Full range open and short compensation

■ Equivalent circuit: series and parallel

■ Compare main parameter with nominal value and display percent deviation

■ Built in USB-C interface for data transmission and charging

■ Language: English, Chinese

■ LCD touch screen with adjustable backlight

■ Automatic power off
