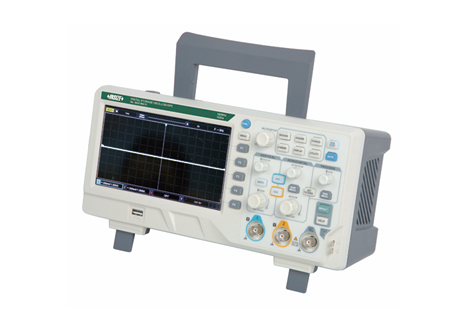

INSIZE 9530-WA10 Oscilloscope ດິຈິຕອນ (100 MHz, 2 channels)

Specification

Analogue bandwidth: 100MHz

Channel: 2

Maximum real-time sampling rate: 1GSa/s (non-interleaved mode)

Rise time: ≤3.5ns

Memory depth: 64kpts

Waveform capture rate: 5000wfms/s

Vertical scale (V/div): 1mV/div~20V/div

Time base scale (s/div): 2ns/dlv-50s/div

Storage method: setup, wave, bitmap

Trigger type: edge, pulse, alternate, slope, video

Trigger mode: auto, normal, single

Trigger coupling: DC, AC, HF, LF, noise

Cursor measurement: time, voltage, tracking

Parameter measurement: automatic measurement of multiple waveform parameters

Mathematical operation: : , -, x, +, FFT, filter

Digital filter: low pass, high pass, band pass, band stop

Setting: internal: 20 groups. USB: 200 groups

Waveform: internal: 20 groups. USB: 200 groups

Recorded frame: 1000 frames of screen data

Interface: USB Host, USB Device, Pass/Fail

Maximum input voltage: 300Vrms, the transient over voltage is 1000 Vpk.

Probe compensator output: voltage: about 3Vp-p

frequency: 10Hz, 100Hz, 1kHz, 10kHz

Power supply: AC 100V-240V, 50-60Hz

Dimension (LxWxH): 306mmx138mmx124mm

Weight: 2.5kg

Standard Delivery

Main unit: 1pc

Passive probe: 2pc

USB cable: 1pc

■ Analogue bandwidth: 100MHz

■ Memory depth: 64kpts

■ Sampling rate per channel: 1GSa/s(non-interleaved mode) Waveform capture rate: 5,000wfms/s

■ Automatic measurement of multiple waveform parameters Multiple frequency standard square waves can be output:10Hz, 100Hz, 1kHz, 10kHz

■ Sampling mode: real-time sampling and equivalent sampling

■Lissajous method: measuring the phase of a waveform
