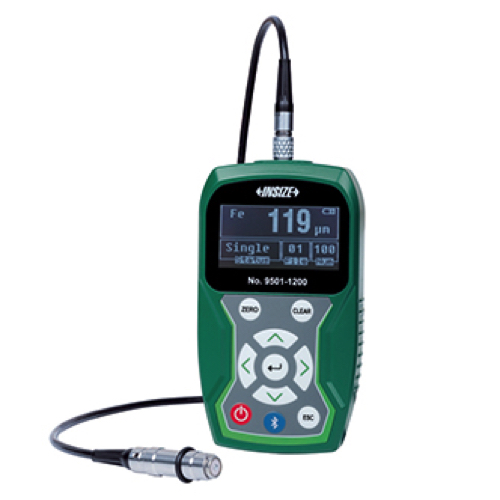

INSIZE 9501-1200NWL ເຄື່ອງວັດແທກຄວາມຫນາຂອງການເຄືອບໄຮ້ສາຍ (0-1250µm)
Probe: eddy current probe
Measuring range: refer to the specification of probes
Accuracy:
±(3%L+1)µm (range≤1250µm)
±(3%L+10)µm (range>1250µm)
L is measuring thickness in µm
Resolution:
0.1µm (range<100µm)
1µm (range≥100µm)
Measuring mode: continuous and single
Storage capacity: 600
Output: Type-C
Power supply: 2 × 1.5 V AA batteries
Dimension (L × W × H): 135 × 77 × 32 mm
Weight: 172 g
9501-1200-NFE Probe
Range: 0-1250µm
Minimum substrate thickness: 0.3mm
Minimum measuring area: Ø15mm
Minimum curvature radius of convex workpiece: 3mm
Probe type: eddy current probe (NFE)
STANDARD DELIVERY
Magnetic induction probe (9501-1200-FE): -
Zero calibration block for FE probe: -
Eddy current probe (9501-1200-NFE): 1 pc
Zero calibration block for NFE probe: 1 pc
Main unit: 1 pc
Software and USB cable: 1 pc
Calibration foils (50/100/250/500/1000μm): 5 pcs
1.5V AA battery: 2 pcs
