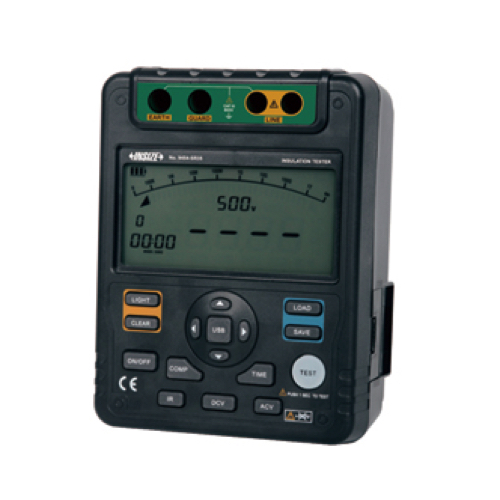

INSIZE 9454-SR35 Insulation Resistance Tester (500V~5000V, 0.5MΩ ~ 1000GΩ)
Insulation resistance:
Test voltage: Range
500V: 0.5MΩ ~ 20GΩ
1000V: 1MΩ ~ 40GΩ
2500V: 2.5MΩ ~ 100GΩ
5000V: 5MΩ ~ 1000GΩ
Resolution:
0.5MΩ ~ 99.9MΩ: 0.1MΩ
100MΩ ~ 999MΩ: 1MΩ
1GΩ ~ 9.99GΩ: 0.01GΩ
10GΩ ~ 1000GΩ: 0.1GΩ
Accuracy:
0.5MΩ ~ 99.9MΩ: ±(3%+5d)
100MΩ ~ 9.99GΩ: ±(5%+5d)
10GΩ ~ 99.9GΩ: ±(10%+5d)
100GΩ ~ 1000GΩ: ±(20%+5d)
DC voltage:
Range: ±(30 ~ 600)V
Resolution: 1V
Accuracy: ±(2%+3d)
AC voltage (50/60 Hz):
Range: (30 ~ 600)V
Resolution: 1V
Accuracy: ±(2%+3d)
Short-circuit current: >3.0mA
Operation environment: temperature: -10°C ~ 40°C; humidity: ≤85%RH
Power supply: 8 LR14 batteries or power adapter
Dimension: 202×155×94mm
Weight: 1.28kg
*Open-circuit voltage: DC voltage 0% ~ +20%
**Insulation resistance of 100GΩ or more should be measured under 50% RH humidity
STANDARD DELIVERY:
Main unit: 1 pc
Alligator clip test lead: 3 pcs
Battery (LR14): 8 pcs
Power adapter: 1 pc
USB cable: 1 pc
