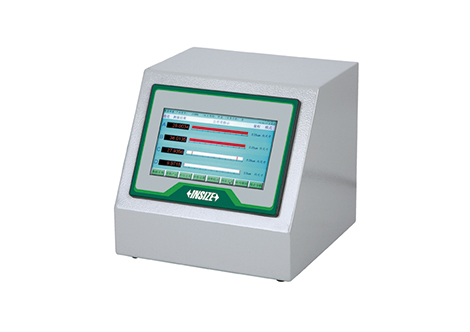

INSIZE 9440-DP40 ຈໍສະແດງຜົນເຄື່ອງວັດແທກອາກາດຫຼາຍຊ່ອງ (0.1 µm)
Standard Delivery
Main unit: 1 pc
Specification
Display screen: 7" TFT LCD touch screen display
Display mode: graphic display, digital display
Number of channels: 4*
Range, accuracy:
10 µm: accuracy 0.2 µm
20 µm: accuracy 0.4 µm
50 µm: accuracy 1 µm
100 µm: accuracy 3 µm
Resolution: 0.1μm
Unit: mm
Air supply: dry and clean, 0.4-0.7MPa
Data interface: RS232/USB**
Operation temperature: -10-55°C
Power supply: 220V, 50/60Hz
Dimension (LxWxH): 240×230×230mm
Weight: 5.6kg
* The number of channels can be customized from 1 to 8
**RS4885 port, l/O port, Ethernet communication port can be customized according to customer requirements
- Data sforage function, 2 million groups dafa can be stored
- Can store 10 groups measuring programs, and the program can be switched quickly
- Insert USB flash disk to output storage data, updata program
- Data can be shared or networked via TCP/IP (customized)
- With data stafistics and analysis funotions, can display graphs and Xbar-R control charts
