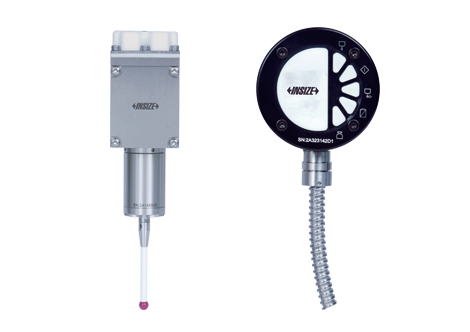

PROBE SPECIFICATION
Signal transmitter length (L): 67mm
Probe length (L1): 42mm
Probe extension rod (included): 150mm
Trigger accuracy of styli in any direction: 1μm
Protection stroke triggered by styli in all directions: X and Y axis stroke: ±12°, Z axis stroke: 5mm
Trigger force of styli in all directions: X and Y axis: <1.6N, Z axis: <9.8N
Dust/waterproof: IP68
Power supply: 2xLS14250 lithium battery
RECEIVER SPECIFICATION
Code: 9426-A
Protection function: low battery voltage or probe transmitting signal all the time*
Applicable probe: code 9426-1, 9426-2, 9426-3, 9426-4
Cable length: 8m
Dust/waterproof: IP68
Power supply: input voltage: 24V±10% (DC), load current: 50mA
■ On-machine measurement of all kinds of lathes, turning centers and mill-turn CNC machines tools
■ Automatically set the workpiece coordinate and machining reference point before CNC machining process
■ Automatically measure dimension and position coordinate during CNC machining Measure dimension, shape and position after CNC machining is completed
■ Four kinds of SSR signals such as probe status, error, low voltage and pulse are transmitted to CNC machine tools
■ M code is used to control on or off of probes
■ Radio transmission, transmission/reception range: 14m
■ Supplied with measurement software
■ Optional accessory: styli
■ Mounting plate can be customized
