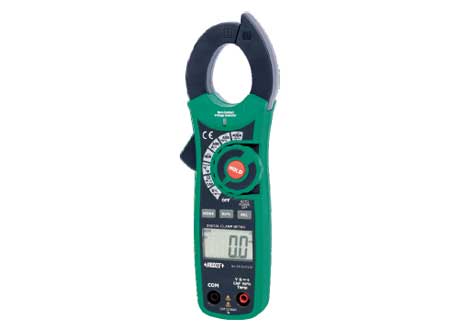

INSIZE 9315-CF210 Gigital AC/DC Clamp Meter (400A AC/DC)
SPECIFICATION
AC Current * (50/60HZ): Range: 40A,400A
Resolution: 0.01A, 0.1A
Accuracy ("d" is the least reading): ±(2.5%+8d), ±(2.5%+8d)
DC Current: Range: 40A,400A
Resolution: 0.01A, 0.1A
Accuracy ("d" is the least reading): ±(2.5%+8d), ±(2.5%+8d)
AC Voltage ** (50-400HZ): Range: 4V/40V/400V, 600V
Resolution: 0.001V/0.01V/0.1V, 1V
Accuracy ("d" is the least reading): (1.5%+5d),±(2.0%+5d)
DC Voltage: Range: 400mV, 4V/40V/400V, 600V
Resolution: 0.1 mV, 0.001V/0.01V/0.1V, 1V
Accuracy ("d" is the least reading): ±(0.8%+2d), (1.5%+2d) , ±(2.0%+2d)
Resistance: Range: 4000Q, 4kQ/40kQ/400kQ, 4MQ, 40MQ
Resolution: 0.10, 0.001 kO/0.01 kQ/0.1kQ, 0.001MQ, 0.01MQ
Accuracy: ±(1.0%+4d), ±(1.5%+2d), ±(2.5%+3d), ±(3.5%+5d)
Capacitance: Range: 40nF, 400nF/4pF/40pF, 400pF, 4mF
Resolution: 0.01 nF, 0.1nF/0.001pF/0.01pF, 0.1pF, 0.001 mF
Accuracy ("d" is the least reading): ±(4.0%+20d), ±(3.0%+5d), ±(4.0%+10d), ±(5.0%+10d)
Frequency: Range: 10Hz/100Hz/1kHz/10kHz
Resolution:0.01 Hz/0.1 Hz/0.001 kHz/0.01 kHz
Accuracy: ±(1.2%+2d)
Duty cycle: Range: 0.5% to 99.0%
Resolution:0.1%
Accuracy: ±(1.2%+2d)
Temperature (Type K): Range: -20°C to 760°C, -4°F to 1400°F
Resolution:1°c, 1F
Accuracy: ±(3.0%+5°C), ±(3.0%+8°C)
Power supply: 2x1.5V AAA batteries
Dimension (LxWxH): 210x75x45mm
Weight:255g
STANDARD DELIVERY
Main unit 1pc
Thermocouple adapter 1pc
Temperature probe 1pc
Battery (AAA) 2pcs
Test lead 2pcs
