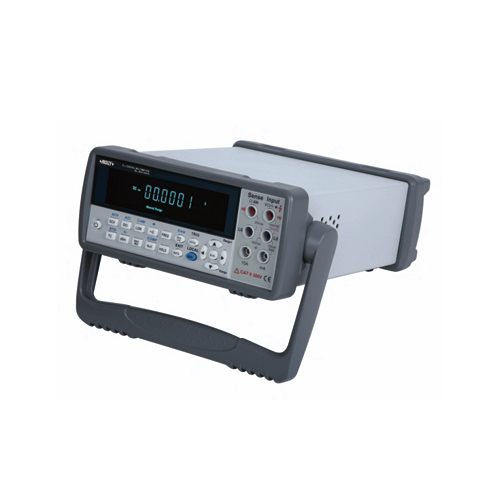

INSIZE 9231-H610 ມິວຕິເຕີດິຈິຕອນ (ປະເພດພື້ນຖານ) (1000VDC 750VAC, 10AAC/DC)
DC Voltage: 100mV/1V/10V/100V/1000V; Basic Accuracy (Reading% + Range%): ±(0.0035 + 0.0005)
AC Voltage: 100mV/1V/10V/100V/750V; Basic Accuracy (Reading% + Range%): ±(0.05 + 0.03)
DC Current: 10mA/100mA/1A/10A; Basic Accuracy (Reading% + Range%): ±(0.015 + 0.005)
AC Current: 10mA/100mA/1A/10A; Basic Accuracy (Reading% + Range%): ±(0.1 + 0.03)
Resistance: 100Ω/1ΚΩ/10ΚΩ/100ΚΩ/1ΜΩ/10ΜΩ/100ΜΩ; Basic Accuracy (Reading% + Range%): ±(0.01 + 0.001)
Capacitance: 10nF/100nF/1µF/10μF/100μF/1000µF/10mF; Basic Accuracy (Reading% + Range%): ±(1 + 0.5)
Frequency: 3Hz~100kHz; Basic Accuracy (Reading% + Range%): ±(0.01)
Temperature: Supports thermocouple and RTD testing (manual cold-end compensation)
Continuity Check: Range 1000Ω, threshold 200Ω
Diode Test: 0V-5V
Frequency Response: 100kHz
Mathematical Operations: Maximum, minimum, average, relative, dBm
Interface: USB/RS232 communication interface
Environmental Conditions
Operation Environment: 0°C~40°C, humidity <80%; 40°C~50°C, humidity <70% (non-condensation)
Storage Environment: -25°C~60°C, humidity <90% (non-condensation)
Power Supply: 220V±10%, 50/60Hz
Size (W×H×D): 310×255×109mm
Weight: 4.1kg
