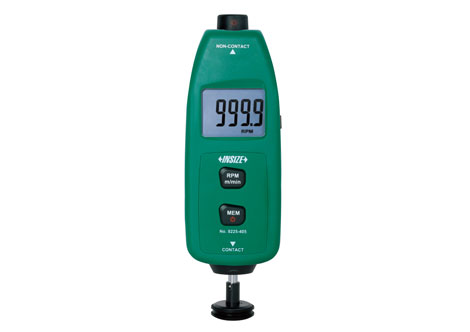

INSIZE 9225-405 ເຄື່ອງວັດແທກການຕິດຕໍ່ / ບໍ່ຕິດຕໍ່ (2,5~99999RPM/0,5~19999RPM)
SPECIFICATION
Measuring method: Non-contact/ Contact
Measuring range:
rotary speed: 2.5~99999 RPM/ 0.5~19999 RPM
Line speed: - / 0.05~500 m/min
Resolution:
rotary speed: 0.1 RPM (range 2.5~999.9 RPM) / 0.1 RPM (range 0.5~999.9 RPM)
1 RPM (range 1000~99999 RPM) / 1 RPM (range 1000~19999 RPM)
Line speed: - / 0.01 m/min (range 0.05~99.99 m/min), 0.1 m/min (range 100~500 m/min)
Accuracy:
rotary speed: ±(0.05%n+1d)RPM / ±(0.4%n+1d)RPM (n<300RPM), ±(0.05%n+1d)RPM (n>=300RPM)
Line speed: - / ± (1%+1d)m/min d is resolution
Laser power: Class III, 3mW~4mW / -
Sampling time: 0.6s (above 100 RPM)
Measuring distance: 50~500 mm / -
Operating teamperature: 0~40*C
Power supply: 3xAA batteries
Dimension: 206x71x36mm
Weigh: 170g
Standard deliverry
main unit: 1pc
Reflection sticker: 3 pcs
wheel with 0.1m perimeter: 1pc
Clamping sleeve: 1pc
Cone head: 1pc
Small cone head: 1pc
Cone cavity head: 1pc
Battery (AA): 3 pcs
