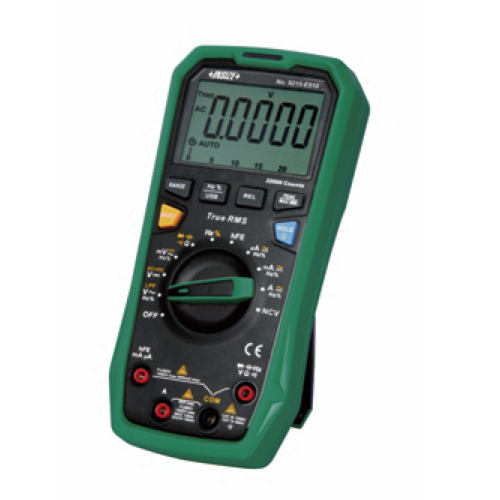

INSIZE 9215-E510 ເຄື່ຶອງວັດຄ່າໄຟຟ້າແບບດີຈີຕອນ (True RMS)
DC Voltage:
Range / Resolution / Accuracy ("d" is the resolution)
220mV / 0.01mV / ±(0.1% + 5d)
2.2V-22V-220V/ 0.1mV-0.001V-0.01V / ±(0.05% + 5d)
1000V / 0.1V / ±(0.1% + 5d)
AC Voltage:
Range / Resolution / Accuracy ("d" is the resolution)
220mV / 0.01mV / ±(1% + 10d) 40Hz~1kHz; ±(1.5% + 30d) 1kHz~10kHz
2.2V-22V / 0.1mV-1mV / ±(0.8% + 10d) 40Hz~1kHz; ±(1.2% + 50d) 1kHz~10kHz
220V / 10mV / ±(0.8% + 10d) 40Hz~1kHz; ±(2% + 50d) 1kHz~10kHz
1000V / 0.1V / ±(1.2% + 10d) 40Hz~1kHz; ±(3% + 50d) 1kHz~10kHz
DC Current:
Range / Resolution / Accuracy ("d" is the resolution)
220μA-200μA-22mA-220mA / 0.01μA-0.1μA-0.001mA-0.01mA / ±(0.5% + 10d)
20A / 0.001A / ±(1.2% + 50d)
AC Current
Range / Resolution / Accuracy ("d" is the resolution)
220μA-2200μA / 0.01μA-0.1μA / ±(0.8% + 10d), 40Hz~1kHz; ±(3.0% + 50d), 1kHz~10kHz
22mA-220mA-20A / 0.001mA-0.01mA-0.001A / ±(1.2% + 10d), 40Hz~1kHz; ±(3.0% + 50d), 40Hz~1kHz
Resistance
Range / Resolution / Accuracy ("d" is the resolution)
2200Ω-2.2kΩ-22kΩ-220kΩ / 0.01Ω-0.0001ΚΩ-0.001ΚΩ-0.01ΚΩ / ±(0.5% + 10d)
2.2MΩ / 0.0001MΩ / ±(0.8% + 10d)
22MΩ / 0.001MΩ /±(1.5% + 10d)
220MΩ / 0.01MΩ /±(3.0% + 50d)
Capacitance
Range / Resolution / Accuracy ("d" is the resolution)
22nF-220nF-2.2μF-22μF / 0.001nF-0.01nF-0.0001μF-0.001μF / ±(3.0% + 5d)
220μF-2.2mF / 0.01μF-0.0001mF / ±(4.0% + 5d)
22mF / 0.001mF / ±(10% + 5d)
220mF / 0.01mF / ±(20% + 5d)
Frequency:
Range / Resolution / Accuracy ("d" is the resolution)
10Hz~220MHz / 0.01Hz~0.01MHz / ±(0.01% + 5d)
Duty Cycle:
Range / Resolution / Accuracy ("d" is the resolution)
0.1%–99.9% / 0.1% / ±(2.0% + 5d)
Transistor hFE: 1β–1000β
Diode Test: Open Circuit Voltage: 3V
Continuity Check: <50Ω
Power Supply: 4x1.5V AAA batteries
Dimensions: 186×89×49mm
Weight: 400g
