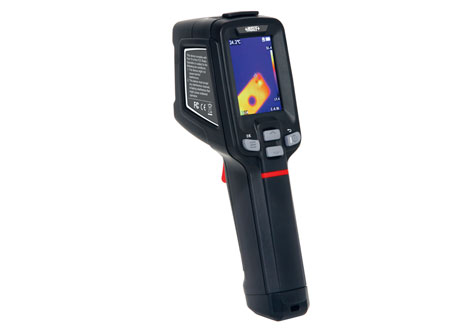

INSIZE 9132-T400 ກ້ອງຖ່າຍພາບຄວາມຮ້ອນອິນຟາເລດ (ປະເພດພື້ນຖານ) (50°x38°, 2.28mm/F1.13)
IR image
IR resolution: 120×90@17μm
detector type: VOx/7.5~14μm
frame rate: 25Hz/9Hz
thermal sensitivity/NETD: 60mk
focal length: 2.28mm/F1.13
field of view (FOV): 50°x38°
spatial resolution (IFOV): 7.6mrad
focus: focus-free
Visible camera
visible camera resolution: 320×240, focus-free
flashlight: yes
Image display
display: 2.4 inch IPS technology TFT display
display resolution: 320x240
image model: IR/visible/picture-in-picture
color palettes: 6: white hot, iron red, hot iron, arctic, rainbow 1, rainbow 2
Temperature measurement
temperature range: -20~150°C, 100~400°C (auto switching)
accuracy: ±2°C or ±3%, whichever is greater (target temp ≥0°C, ambient temp is 15~30°C)
measurement area: center spot
measurement spot: 3 (incl. max & min temp)
auto max & min spot tracking: yes
alarm: full screen max & min spot alarm
Image storage
storage media: TF card (16G)
IR image format: full radiometric (JPG) (120 x 90)
visible image: yes, 320x240
Connections & communications
USB: TYPE-C, TF card slot
tripod interface: yes
mobile APP: yes
PC IR analysis software battery type: yes
Power system
battery type: rechargeable li ion battery
battery operation time: >5 hours
charging time: internal charge, ≤2.5 hours
Emvironmental parameters
operation temperature: -10~50°C
storage temperature: -40~70°C
protection: IP54, 2-meter drop test
certification: CE/ROHS/FCC
dimension (LxWxH): 194×61.5×76mm
weight: 350g
Standard Delivery
Main unit: 1pc
Power supply adapter: 1pc
TYPE-C cable: 1pc
16G TF card: 1pc
