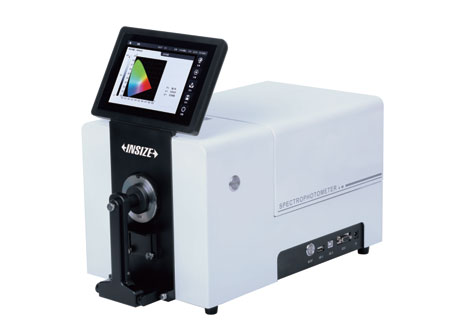

INSIZE 5706-DS01 ເຄື່ອງວັດແທກແສງຕາເວັນ (Ø152mm; 360nm~780nm)
Specification:
Optical geometry: reflect: D/8 (diffused illumination, 8°direction reception), transmission: D/0 (diffused illumination, vertical reception) SCI (specular reflective light included), SCE (specular reflective light not included)
Integrating sphere diameter: Ø152mm
Light source: pulsed xenon lamp and LED
Spectrophotometric mode: concave grating
Sensor: double array CMOS image sensor
Wavelength range: 360nm~780nm
Wavelength interval: 10nm
Reflectance measuring range: 0-200%
Reflectance resolution: 0.01%
Transmission measurement: width and height unlimited, thickness≤50mm
Measuring aperture: reflect: XLAV Ø25.4mm/Ø30mm, LAV Ø15mm/18mm, MAV 08mm/011mm, SAV Ø3mm/06mm, transmision: Ø17mm/25mm
Color space: Lab, L"C"h, Hunter Lab, Yxy, XYZ
Color difference formula: ΔE*ab, ΔΕ*CH, ΔΕ*υν, ΔΕ*cmc, ΔE94, ΔE*00, ΔEab(Hunter), 555 color classification
Colorimetric index: WI(ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube, Berger Stensby), YI(ASTM D1925, ASTM E313-00, ASTM E313-73), Tint(ASTM E313-00), metamerism index Milm, staining fastness, color fastness, ISO luminance, R457, A density, Tdensity, Edensity, M density, APHA/Hazen/Pt-Co, Gardner, Saybolt, Astm color, haze, total transmittance, coverage, power, strength
Observer angle: 2°/10°
Illuminant: A, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CWF, U30, DLF, NBF, TL83, TL84
Measuring time: SCI or SCE <2 seconds, SCI and SCE simultaneous measuring <4 seconds ΔE*ab≤0.015
Repeatability: reflect/transmittance≤0.1%
Inter-instrument error: XLAV ΔE*ab≤0.25 (based on average of 12 swatches of BCRA series at 23°C)
Data port: RS232, USB, USB-B
Power supply: power adapter (24V/2.5A)
Dimension: 465×240×260mm
Weight: 10.8kg
Standard Delivery:
Main unit: 1 pc
Black cavity: 1 pc
White plate: 1 pc
Green plate: 1 pc
Measuring aperture: 4 pcs
Cuvette: 1 pc
USB flash disk: 1 pc
Data cable: 2 pcs
Damping handle: 1 pc
Support platform: 1 pc
Transmission fixture: 1 pc
Power adapter:1 pc
■ Highly stable UV source for stable fluorescence measurements
■ Grating spectroscopy, 7" IPS touch screen
■ Two types of light sources: pulsed lamp and LED, can measure SCI and SCE simultaneously and quickly
■ 24 standard light sources, more than 40 measurement indicators
■ Temperature and humidity compensation function
Datasheet
