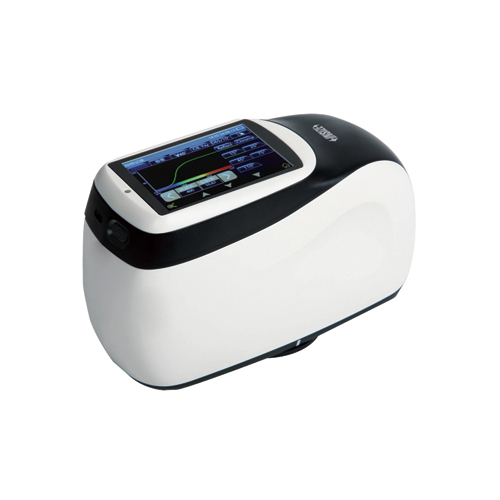

INSIZE 5705-MS45 Multi-Angle Spectrophotometer (400nm~700nm, 0~600%)
Measurement Geometry: 5 measurement angles (5 illumination sources, 1 receiver)
Measuring Angle: 45° receiver: 45as15°, 45as25°, 45as45°, 45as75°, 45as100°
Lighting Source: Full spectrum LED light source with blue enhancement
Lamp Life: 5 years, 3 million times measurements
Spectrophotometric Mode: Concave grating
Sensor: 256 image element double array CMOS image sensor
Wavelength Range: 400nm7~00nm
Wavelength Interval: 10nm
Measurement Range: 0~600%
Semiband Width: 10nm
Measuring Aperture: Illuminant Ø23mm, Sampling Ø12mm
Color Space: CIE LAB, XYZ, Yxy, Lch, ẞxy, DIN Lab99
Color Difference Formula: AEab, ΔΕ94, ΔΕcmc (2:1), ΔΕcmc (1:1), ΔΕ*00, DINAE99, AE DIN6175
Other Colorimetric Index: Flop index
Observer Angle: 2°/10°
Illumination: D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5), F11 (TL84), F12 (TL83/U30)
Measuring Time: Approx. 1 second for one angle, approx. 5 seconds for all angles
Repeatability: Spectral reflectance: standard deviation within 0.08%, chromaticity value: AEab 0.03
Reproducibility: ΔΕ*<0.10 (avg on the gray tile of BCRA tile set), ΔΕ*<0.25 (avg on the color BCRA tile set)
Trigger Mode: Pressure sensing, trigger, key trigger, software trigger
Measuring Mode: Single measurement, average measurement (199), continuous measurement (199)
Locating Method: Color camera preview
Power: Li-ion battery, 3.7V, 3200mAh, continuous test 6000 times within 8 hours of full charge
Display Screen: 3.5-inch TFT color LCD, capacitive touch screen
Interface: USB, Bluetooth 5.0
Data Storage: Standard 1000 pcs, sample 4000 pcs
Calibration: Built-in white board parameters, external white board, black light trap
Calibration Interval: 4 hours, 8 hours, 24 hours, startup calibration
Dimension: 195x83x128mm
Weight: 1kg
STANDARD DELIVERY:
Main unit: 1 pc
Black light trap: 1 pc
White board: 1 pc
Software and USB cable: 1 pc
Power adapter: 1 pc
Bluetooth receiver: 1 pc
