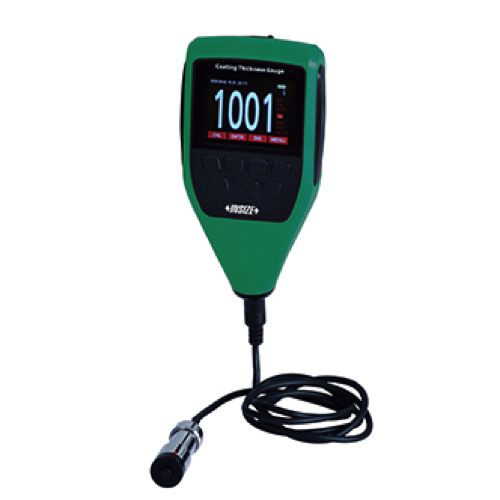

INSIZE 5407-QM25 ເຄື່ອງວັດແທກຄວາມໜາຂອງການເຄືອບ (0–2000µm)
Measuring range: 0–2000µm
Measuring principle:
FE mode: magnetic induction
NFE mode: eddy current effect
Calibration mode: zero calibration, multi-point calibration
Accuracy:
±(2% * L + 1µm): ≤ 2000µm
±(3% * L + 2µm): 2000µm ~ 3000µm
±(5% * L + 2µm): ≥ 3000µm (L is measuring thickness in µm)
Resolution: 0.1µm (< 100µm), 1µm (≥ 100µm)
Minimum curvature radius: convex: 5mm; concave: 25mm
Minimum measuring area: Ø15mm
Minimum substrate thickness: FE: 0.20mm; NFE: 0.03mm
Storage: 1300
Operation environment: temperature: –10°C ~ 50°C, humidity: 20%~90% (non-condensing)
Unit: µm, mm, mil, inch
Language: English, Chinese
Power supply: 2 × 1.5V AA batteries
Dimension (L×W×H): main unit: 147×77×33mm; probe: Ø17×67mm
Weight: main unit: 135g (exclude battery), probe: 63g
