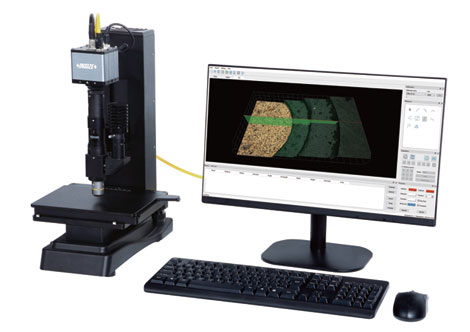

INSIZE 5323-D215 ກ້ອງຈຸລະທັດວັດແທກຄວາມເລິກຂະໜາດໃຫຍ່ຂອງສະໜາມ 3 ມິຕິ
SPECIFICATION
Sensor: 1/1.2" CMOS
Pixel: 2M
Resolution: 1920X1080
Magnification (10X objective): 142~970X (on 21.5" monitor)
Z-axis measurement range: 30μm-6mm
View field (10X objective): 0.29×0.16 ~ 2.0×1.2mm
Working distance: 11mm
Frame rate: 30fps
Stage:
size: 200x180mm
travel: 200x180mm
Plane measuring accuracy: ±5μm
Profile measuring accuracy*: ±10μm
Output: HDMI/LAN
Power supply: power adapter
Dimension (LxWxH): 230×330×500mm
Weight: 12.7kg
* During 3D synthesis, the number of photos should be not less than 150 in order to achieve this accuracy
STANDARD DELIVERY
Main unit: 1 pc
10X objective: 1 pc
1X objective: 1 pc
Power adapter: 1 pc
Calibration plate: 1 pc
16G USB flash disk: 1 pc
