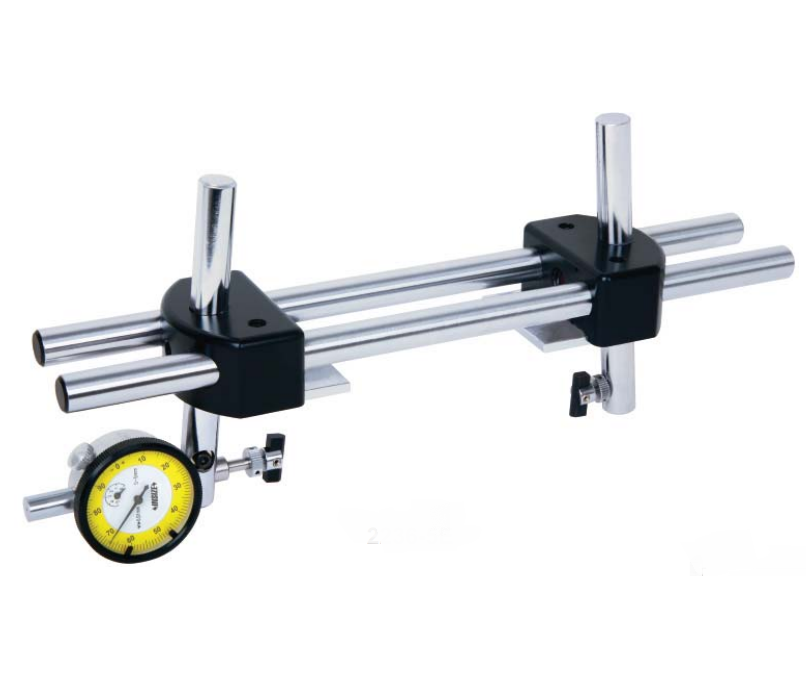

INSIZE 2236-5E ເຄື່ອງມືວັດແທກເສັ້ນຜ່າສູນກາງ Thread Crest ພາຍນອກ (2 3/8-5 1/2“ / 60.325-139.7mm; 0.0005”)

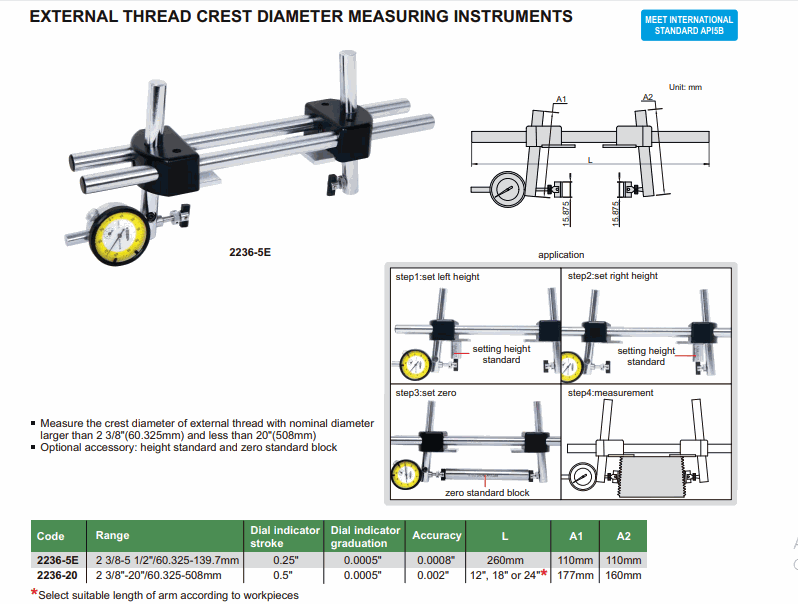

Measure the crest diameter of external thread with nominal diameter larger than 2 3/8” (60.325mm) and less than 20”(508mm)

Range(L): 2 3/8-5 1/2“ / 60.325-139.7mm

Dial indicator stroke: 0.25”

Dial indicator graduation: 0.0005”

Accuracy: 0.0008”

L: 260mm

A1: 110mm

A2: 110mm

Optional accessory:

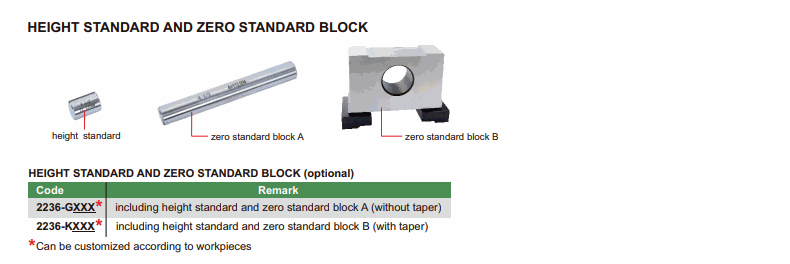

-Height standard and zero standard block
