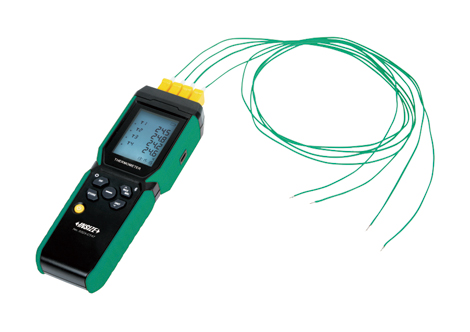

INSIZE 0323-CT47 ເຄື່ອງວັດອຸນຫະພູມ thermocouple (ສີ່ຊ່ອງ) (0.1°C (<1000°C); 1°C (≥1000°C))

Thermocouple type: J/K/T/E/R/S/N

Temperature range (electrical signal):

K: -200°C~1372°C

J: -210°C~1200°C

T: -250°C~400°C

E: -150°C~1000°C

R: 0°C~1767°C

S: 0°C-1767°C

N: -200°C~1300°C"

Temperature accuracy* (electrical signal):

±(0.2% |t| +0.5°C) (at -10°C-1767°C);

±(0.2% |t| +1.0°C) (at -200°C~-10°C);

±(0.2% |t| +2.5°C) (at -250°C~-200°C)

Temperature resolution:

0.1°C (<1000°C); 1°C (≥1000°C)

Repeatability: ±(0.1% |t| +0.3°C)

Response time: 500ms

Logging interval: 1s~24h (adjustable)

Memory capacity 72000

Data transmission: USB TYPE-C, Bluetooth

Power frequency anti-interference: 50/60Hz

Input proof: 60Vmax

Drop proof: 1m

Power supply: 3×AAA alkaline batteries, working time>30h; TYPE-C USB (only be connected to a PC power)

Operation environment:

Temperature: -10°C~50°C

Humidity: <90%RH (non-condensing)

Storage environment:

Temperature: -20°C~60°C

Humidity: <90%RH (non-condensing)

Dimension: 180mm x 63mm x 38mm

Weight: 250g (including batteríe)

*Accuracy is specified for ambient temperature between 18°C and 28°C, the above specification does not include thermocouple probe error

Standard delivery

Main unit: 1pc

Battery (AAA): 3pcs

USB cable: 1pc

K-type thermocouple (0323-K01): 4pcs

Specification of K-type Thermocouple*:

Code: 0323-K01

Range: -40°C~260°C

Accuracy: ±0.75%

Length: 900mm

*Other models, temperature range and length of thermocouples can be customized

■ Unit °C/°F/K

■ Channels are compatible with 7 types of thermocouples K, J, T, E, R, S and N MAX/MIN/AVG/DIF mode

■ 72000 data storage

■ Offset value compensation Data hold function

■ Display backlight Over range indicator

■ Battery level display

■ Automatic power off

■ Built-in Bluetooth, mobile APP is included

■ Computer software is included
