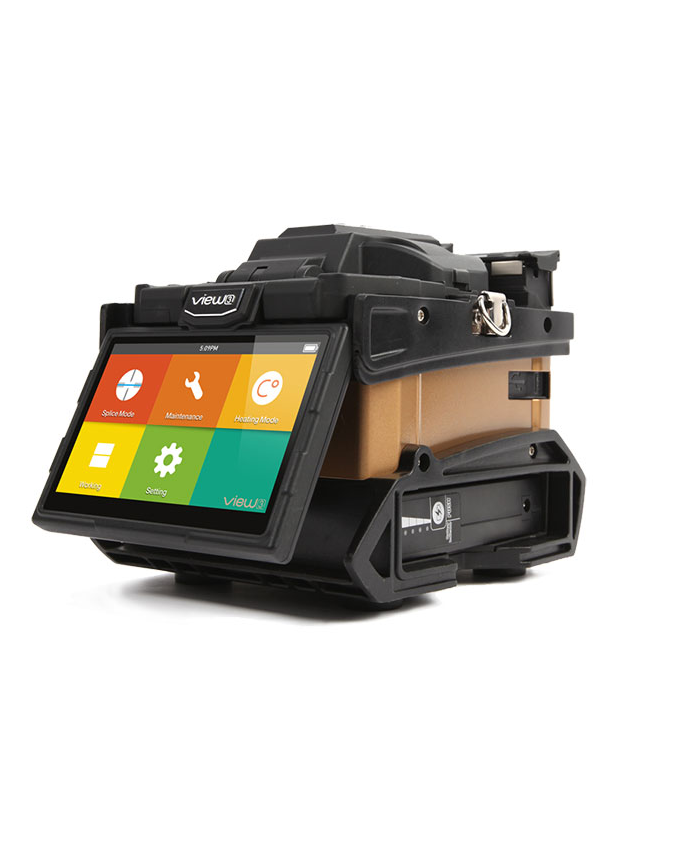

INNO View 6L ອຸປະກອນຕໍ່ເສັ້ນເສັ້ນໃບແຟບອອບຕິກ

Dimensions: 147H × 130W × 155D mm, 1.85 kg (2.21 kg with battery)

Splicing Technology: Core alignment

Applicable Fiber Types: SM (G.652 & G.657), MM (G.651.1), DS (G.653), CS (G.654), NZDS (G.655 & G.656), and Erbium-doped fiber

Number of Fibers Spliced at Once: Single (01 fiber)

Cleaved Length: 8 to 15 mm

Splicing Programs: 128

Heating Programs: 32

Storage Capacity: 10,000 splicing records + images

Splicing Time: 7s (fast mode), 9s (normal mode)

Heating Time: 13s

Typical Splice Loss: SM: 0.02 dB, MM: 0.01 dB, DS: 0.04 dB, NZDS: 0.04 dB

Return Loss: > 60 dB

Tensile Strength: 1.96 ~ 2.25 N

Display: 5-inch touch screen

Camera Magnification: 520×

Interface: USB 2.0 Type B

Electrode Lifetime: 5,500 splices

Power Supply: AC 100–240V, 50/60Hz; DC Input 9–14V

Battery Capacity: 4200 mAh, up to 170 splice + heating
