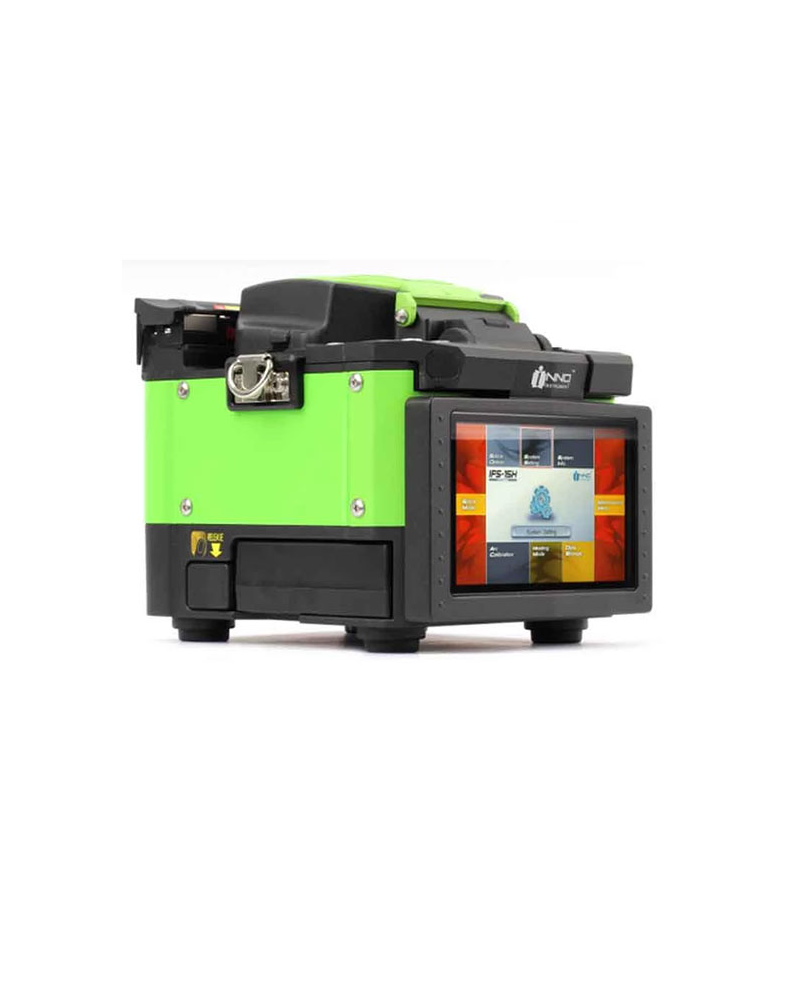

INNO IFS-15H ເຄື່ອງຕໍ່ເຊື່ອມຟິວຊັນ (0.1–20 dB, Splicing Time 7s)

Weight: 1.82 kg (excluding battery)

Supported Optical Fibers: SM (ITU-T G.652) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655) / ITU-T G.657A / ITU-T G.657B

Fiber Diameter: 0.25 mm / 0.9 mm / 2.0 mm / 2.4 mm / 3.0 mm / Flat cable

Fibers per Splice: Single fiber

Fiber Holder: Replaceable (Standard: FH-40; Optional: FH-10, FH-ST, FH-SC)

Cladding/Coating Diameter: Cladding: 80–150 μm / Coating: 100–1000 μm

Fiber Length: For 250–1000 μm diameter: cleave length 8–16 mm

Splicing Modes: Max/Preset: 64/24

Average Splicing Loss: SM: 0.02 dB / MM: 0.01 dB / DS: 0.04 dB / NZDS: 0.04 dB / G.657: 0.02 dB (ITU-T standard)

Return Loss: >60 dB

Splicing Time: SM Quick Mode: 7 seconds

Splice Loss Measurement: Yes

Attenuation Splicing: 0.1–20 dB (0.1 dB step)

Heating Modes: 32 modes / Typical heating time: 35 seconds

Heat-Shrink Sleeves: 10 mm, 20 mm, 30 mm, 40 mm, 50 mm, 60 mm

Memory: Stores the latest 2,000 splice results

Splice Tensile Strength: 1.96–2.25 N (based on the fiber count)

Operating Conditions: 0–5,000 m above sea level; 95% relative humidity; -10–50 °C; maximum wind speed: 15 m/s

Storage Conditions: 0–95% relative humidity; -40–80 °C; battery: -20–30 °C

Dimensions / Color: 155 × 130 × 137 mm (L × W × H) / Eco-green

Display: 2 cameras and 4.3-inch color LCD (high resolution with shock-resistant screen surface)

View / Magnification: X/Y 300×, 180×

Power Supply: DC 18 V

Battery Capacity: Approx. 157 continuous splicing and heating cycles (4,200 mAh)

Electrodes: 2,500 splices

Communication Interface: USB 2.0 / RS232 (for data storage and upgrading)
