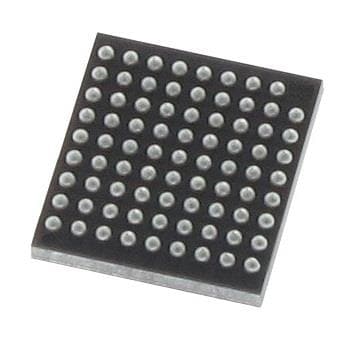

Infineon S29CD016J0MFAM010 Boot Block PNOR

Speed: 56 MHz

Standard: Common Flash Interface (CFI)

Memory Size: 16 Mbit

Memory Type: NOR

Timing Type: Asynchronous, Synchronous

Architecture: Sector

Organization: 512 k x 32

Qualification: AEC-Q100

Data Bus Width: 32 bit

Interface Type: Parallel

Mounting Style: SMD/SMT

Moisture Sensitive: Yes

Supply Voltage - Max: 2.75 V

Supply Voltage - Min: 2.5 V

Maximum Clock Frequency: 56 MHz

Active Read Current - Max: 90 mA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
