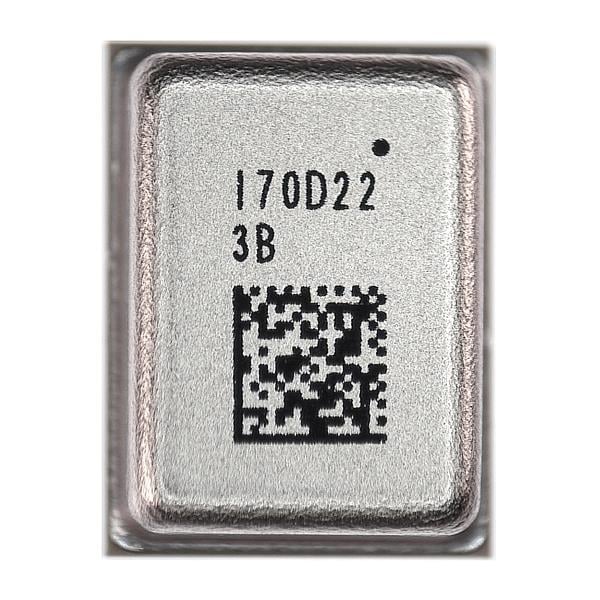

Infineon IM70D122V01XTMA1 ດິຈິຕອນ MEMS ໄມຄໂຣໂຟນ MIC SDM DIGITAL

Depth: 0.98 mm

Shape: Rectangular

Width: 2.65 mm

Length: 3.5 mm

IP Rating: IP57

Port Type: Top

Dimensions: 2.65 mm x 0.98 mm x 3.5 mm

Technology: MEMS

Output Type: Digital

Sensitivity: - 26 dB

Mounting Style: SMD/SMT

Frequency Range: 30 Hz to 15 kHz

Termination Style: SMD/SMT

Sound Pressure Level: 122 dBSPL

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.62 V

Directional Properties: Omnidirectional

Operating Supply Voltage: 1.62 V to 3.6 V

SNR - Signal to Noise Ratio: 70 dB

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
