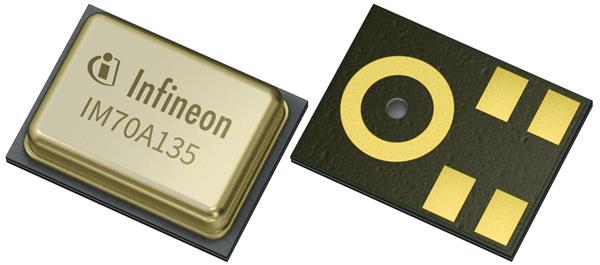

Infineon IM70A135V01XTMA1 ໄມຄໂຣໂຟນ MEMS ອນາລອກ MIC SDM ANALOG

Depth: 1 mm

Shape: Rectangular

Width: 2.65 mm

Length: 3.5 mm

IP Rating: IP57

Impedance: 250 Ohms

Port Type: Top

Dimensions: 2.65 mm x 1 mm x 3.5 mm

Technology: MEMS

Output Type: Analog

Sensitivity: - 38 dB

Mounting Style: SMD/SMT

Frequency Range: 37 Hz to 15 kHz

Termination Style: SMD/SMT

Sound Pressure Level: 135 dBSPL

Supply Voltage - Max: 3.3 V

Supply Voltage - Min: 2.3 V

Directional Properties: Omnidirectional

Operating Supply Voltage: 2.3 V to 3 V

SNR - Signal to Noise Ratio: 70 dB

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
