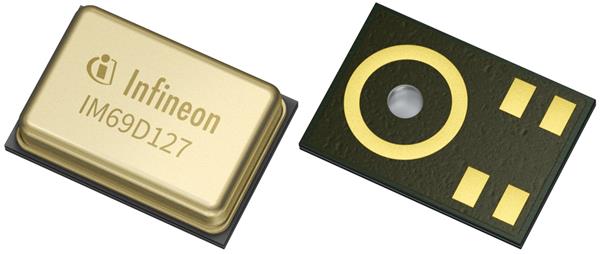

Infineon IM69D127V11XTMA1 ດິຈິຕອນ MEMS ໄມຄໂຣໂຟນ MIC SDM DIGITAL

Depth: 1 mm

Shape: Rectangular

Width: 2.5 mm

Length: 3.6 mm

IP Rating: IP57

Port Type: Top

Tolerance: 1 dB

Dimensions: 2.5 mmx 1 mm x 3.6 mm

Technology: MEMS

Output Type: Digital

Sensitivity: - 35 dB

Mounting Style: SMD/SMT

Frequency Range: 40 Hz to 15 kHz

Termination Style: SMD/SMT

Sound Pressure Level: 127 dBSPL

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.62 V

Directional Properties: Omnidirectional

Operating Supply Voltage: 1.62 V to 3.6 V

SNR - Signal to Noise Ratio: 69 dB

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
