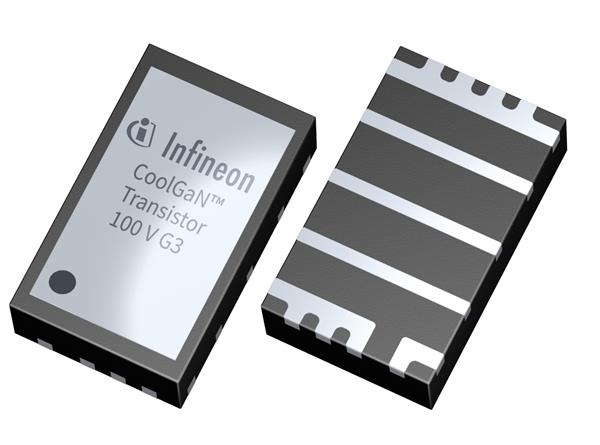

Infineon IGC033S10S1XTMA1 CoolGaN Transistor MV GAN DISCRETES

Technology: GaN

Channel Mode: Enhancement

Configuration: Single

Mounting Style: SMD/SMT

Transistor Type: 1 P-Channel

Qg - Gate Charge: 11 nC

Number of Channels: 1 Channel

Transistor Polarity: P-Channel

Pd - Power Dissipation: 45 W

Vgs - Gate-Source Voltage: - 4 V, + 5.5 V

Id - Continuous Drain Current: 76 A

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C

Rds On - Drain-Source Resistance: 3.3 mOhms

Vds - Drain-Source Breakdown Voltage: 100 V

Vgs th - Gate-Source Threshold Voltage: 2.9 V
